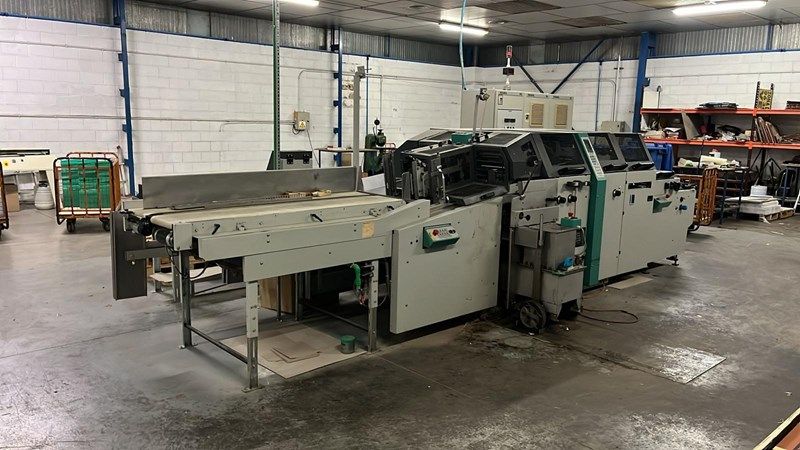

Kolbus DA 270

Board prestacking conveyor for automatic magazine reloading (stream and pile feeding)
Centre strip infeed for the spine strip made of roll material, holding capacity for 2 centre strip rolls, longitudinal and cross cutting device
Cutter for the centre strip waste
Device for automatic pasting and changing of endless spine strip with the machine running
Cloth feeder for non stop operation with pile magazine, max. stacking height 160 mm
Miss cloth control during the separation process
Counter stacker delivery with following roller conveyor
Moveable gluing station for processing hot-glue with glue preparation unit in the premelter heated glue application roller and scraper roller
Glue application adjustment by outside control
Viscosity control device for automatic water supply to ensure constant glue viscosity
Pressing roller device for crease-free connection of the cover material with boards and spine strip
Device for producing padded cases
Device for inside lining with hot-glue
Automatic case counter
Programmable automatic setting, motorized adjustments, fault indication
Single case request for control purposes done from the operating side
Board centre strip magazine
Device for inside lining with cold-glue
