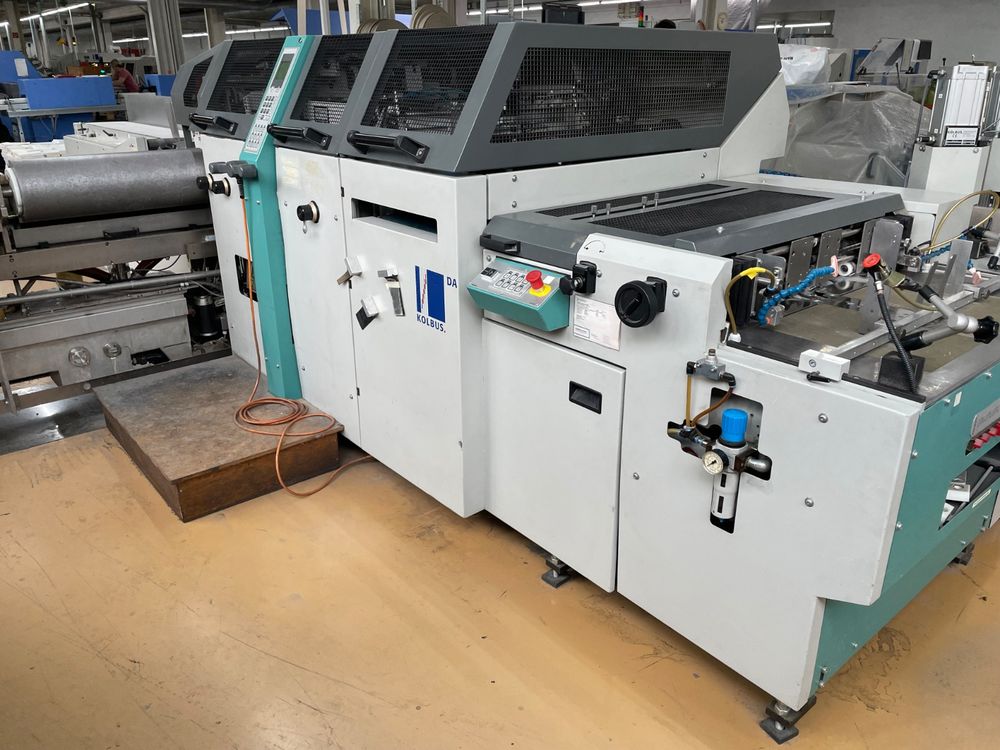

Kolbus DA 270

Automatic Casemaking Machine For Hard Cover Production
Cloth Feeder For Non-Stop Operation With Pile Magazine
(Max. Stacking Height: 160 mm)
Board Pre-Stacking Conveyor (1,700 mm) For Automatic Magazine Reloading
(Stream and Pile Feeding)
Centre Strip Infeed For Spine Strip From Roll Material
With Two-Roll Capacity
Longitudinal And Cross Cutting Device
Miss-Cloth Control During Separation Process
Motorized Adjustments With Digital Displays And Programmable Automatic Settings With Fault Indication
Inside lining Device With Hot Glue
Viscosity Control Unit
External Glue Application Adjustment
Pressing Roller System For Crease-Free Bonding Of Cover Material, Boards, And Spine Strip
Movable Hot-Glue Station With Premelter
Heated Glue Roller, Scraper Roller
Cloth Cylinder With Grippers
And Exchangeable Rubber Pad Plate
Device For Padded Case Production
Automatic Case Counter, Single Case Request Function For Control
Counter Stacker Delivery With Roller Conveyor

Special Equipment:
Board Centre Strip Magazine
Chopper For Centre Strip Waste
Automatic Pasting And Changeover Of Endless Spine Strip During Operation
Open Cover Size: Max: 670 × 390 mm, Min: 154 × 100 mm
Joint Width: 4 – 15 mm
Spine Width: 14 – 120 mm
Turn-In Width (Closed): 8 – 15 mm
Cloth Size: Width: 170 – 708 mm, Height: 130 – 428 mm
Board: Thickness: 1 – 4 mm, Width: 70 – 328 mm, Height: 100 – 390 mm
Board Centre Strip: Thickness: 1 – 4 mm, Width: 6 – 90 mm
Centre Strip Roll: Thickness: 0.3 – 0.6 mm, Width: 6 – 90 mm
Speed: up to 65 cycles/min.
