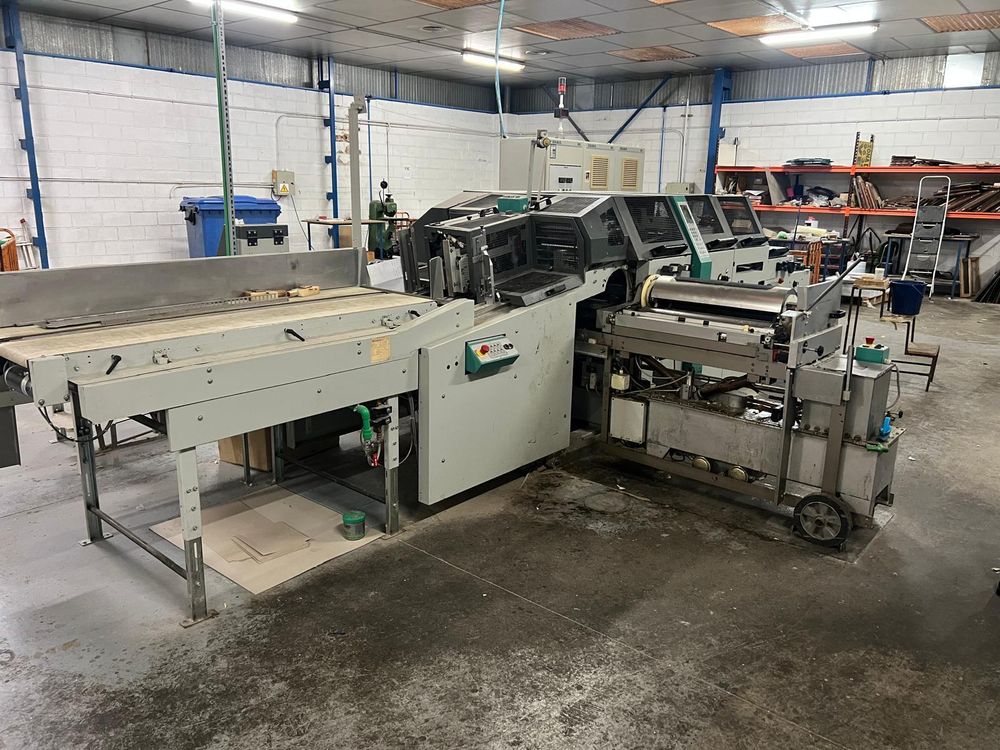

Kolbus DA 270

Cover size max.: 670x390 mm
Cover size min.: 205x140 mm
Cloth height: 130 - 428 mm
Cloth width: 223 - 708 mm
Cardboard thickness: 1 to 4 mm
Cardboard width: 95 - 328 mm
Cardboard height: 140 - 390 mm
Joint width: 4- to 15 mm
Spine width: 14- to 120 mm
Turn in width closed: 8 - to 15 mm
Centre strip roll thickness / width: 03, to 0,6 mm / 6- to 90 mm
Mechanical speed: 65 cycles/min.

Production of hardcover books, filing cabinets and table games
Automatic measurement setting system
Carton feeding tape
Automatic cardboard feeder
Double roll holder with automatic feeding and cutting to make covers with round loin
Liner feederGluing unit with pre-heated gelatin tank
Check the viscosity of the glue with viscometer and pump for water control
Roller press
Roll tape output with counter.
Exit to the right with possibility to left

CORNER CUTTING KOLBUS ECK 100
Technical specifications:
Size range opened case (min) 205 x 140 mm
Size range opened case (max) 670 x 390 mm
Join width: 4 - 15 mmWidth between boards: 14 - 120 mm
Turn width, closed 8 - 15 mm
Cloth with: 223 - 708 mm
Cloth height: 130 - 428 mm
Boards:Thickness: 1 - 4mm
Width: 95 - 328 mm
Height: 140 - 390 mm
