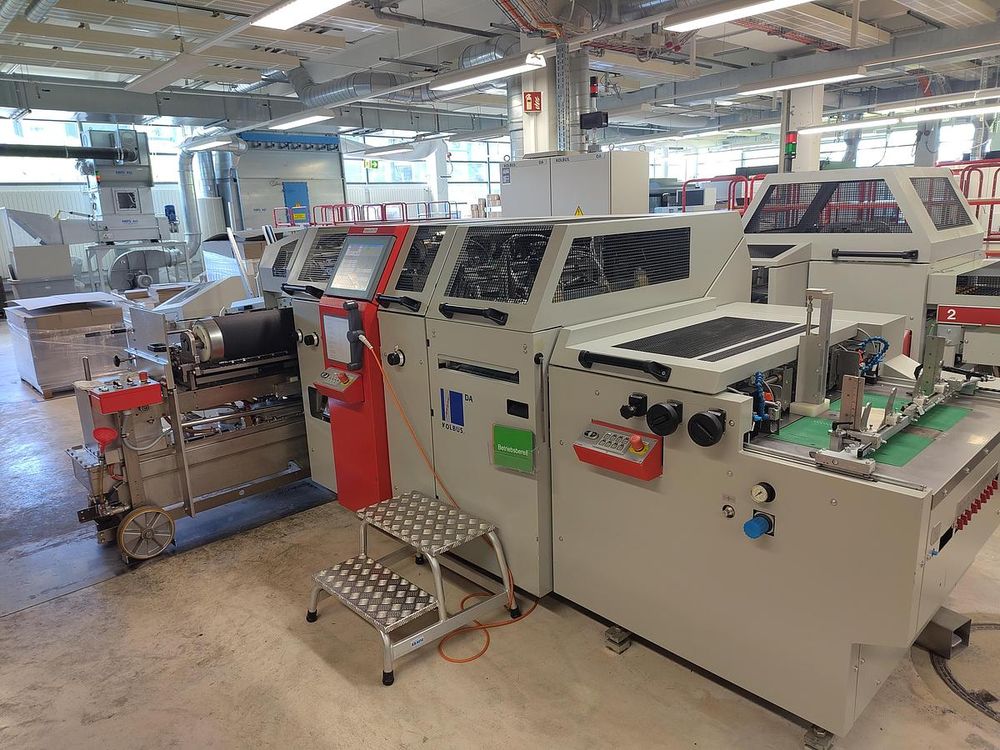

Kolbus DA 270

Casemaker DA 270 BOOKJET EDITION
For fully automatic production of book cases, files, display cards, calendar backs or game boards.

Configuration:
Copilot system with touchscreen
board magazine for manual loading
cloth feeder for non-stop operation with pile magazine, max. stacking height 160 mm miss cloth control during the separation process
counter stacker delivery with following roller conveyor
moveable gluing station for processing hot-glue with glue preparation unit in the premelter,
heated glue application roller and scraper roller
cloth cylinder with grippers and exchangeable plates for rubber pad (incl. 5 x 500 mm, 5 x 720 mm and 10 x rubber pad)
viscosity control device for automatic water supply to ensure constant glue viscosity with pump and water tank for manual filling
device for inside lining with hot-glue
pressing roller device for crease-free connection of the cover material with boards and spine strip
device for producing padded cases automatic case counter
programmable automatic settings, motorized adjustments, indication of production faults
single case request for control purposes done from the operating side
servo-controlled drive technology based on Siemens SIMOTION D

Special equipment:
without centre strip roll device with board centre strip magazine, boards height min. 130 mm
board centre strip cutting device (cross centre strip) for processing digital print products
of varying centre-strip, device for cutting rigid centre board strips to width, with possible width variatio from cycle to cycle
(counter: only approx. 4,7 mio. book cases)

Technical specifications:
mechanical speed: up to 65 cycles/min
open cover size max.: 670 x 390 mm
open cover size min.: 205 x 140 mm
joint width: 4 - 15 mm
spine width: 14 - 120 mm
turn in width closed: 8 - 15 mm
cloth width: 223 - 708 mm
cloth height: 130 - 428 mm
board thickness: 1 - 4 mm
board width: 95 - 328 mm
board height: 140 - 390 mm
board centre strip thickness: 1 - 4 mm
board centre strip width: 6 - 90 mm

Option:
KOLBUS Turning Device WE 260
year 2017
For coupling with a down-stream machine.

Configuration:
inline production
through-feed mode
transfer conveyor upstream the turning device, length approx. 975 mm

Technical specifications:
mechanical speed: up to 5 turns/min
size range inline production min.: 205 x 140 mm
stack height max.: 125 mm
stack height min.: 15 mm
