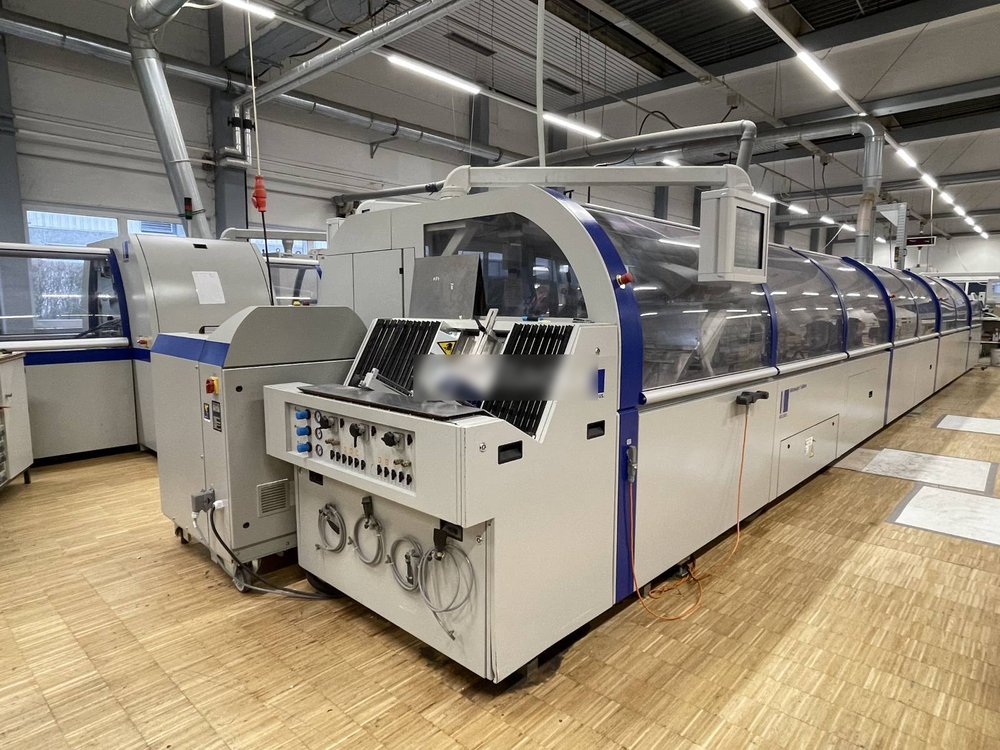

Kolbus KM 200

Gathering Machine:
ATC (automatic sheet thickness control)

Perfect Binder:
Type: KM 200
Year: 2013
Number of clamps: 26
Book Block Feeder
Endsheet: 2 Feeding Stations
Milling station
Gauzing
rill station for 4 times rill
Cover feeder: Rotary cover feeder
Nipping and Pressing station
lay down device
Dryer: Heating elements in curve
Block thickness measuring station

Spine Gluing:
Base for 1 Spine Gluing Unit
Hotmelt: 1 Unit with Premelter LH 375.B (interchangeable)

Side Gluing:
Hotmelt: 1 Unit with Premelter (nozzle, Interchangeable)

Drying Conveyor:
conveyor belts
length of the drying conveyor: 35-40 m
Drying station: with escape delivery

Three knife trimmer:
Type: Kolbus HD-HD 143
Year: 2017
Control panel: Copilotsystem with "Touchscreen"
automatic size adjustment
Pre Slitter
Infeed direction: from the right

Technical Details:
Size max (cutted)): 305 x 375 x 80 mm
Size min (cutted): 100 x 120 x 1,5 mm
Size max (uncutted): 320 x 380 x 80 mm
Front Cut max: 50 mm
Mechanical speed max: 7,500 samples/h without format change
Size min (uncutted): 102 x 150 x 1,5 mm

Stacker:
Type: Kolbus KL 501.D
Year: 2017
Output direction: Left & right
automatic size adjustment

Technical Details :
Size max: 320 x 420 x 80 mm
Size min: 100 x 125 x 2 mm
Pile height max: 330 mm
Mechanical speed max: 18,000 books/hour


Technical Details

Mechanical Speed: 5,000 books/hour
Max Block format range (width x height x thickness): 310 x 380 x 60 mm
Min. Block format range (width x height x thickness): 140 x 150 x 1,5 mm
Sheet weight: min. 80 g/m² - max. 220 g/m²
