Kolbus KM 200

Used Perfect Binding Line Endsheet Drying Tower HD 143 Trimmer Stcker
Only 18 mio Books Impression

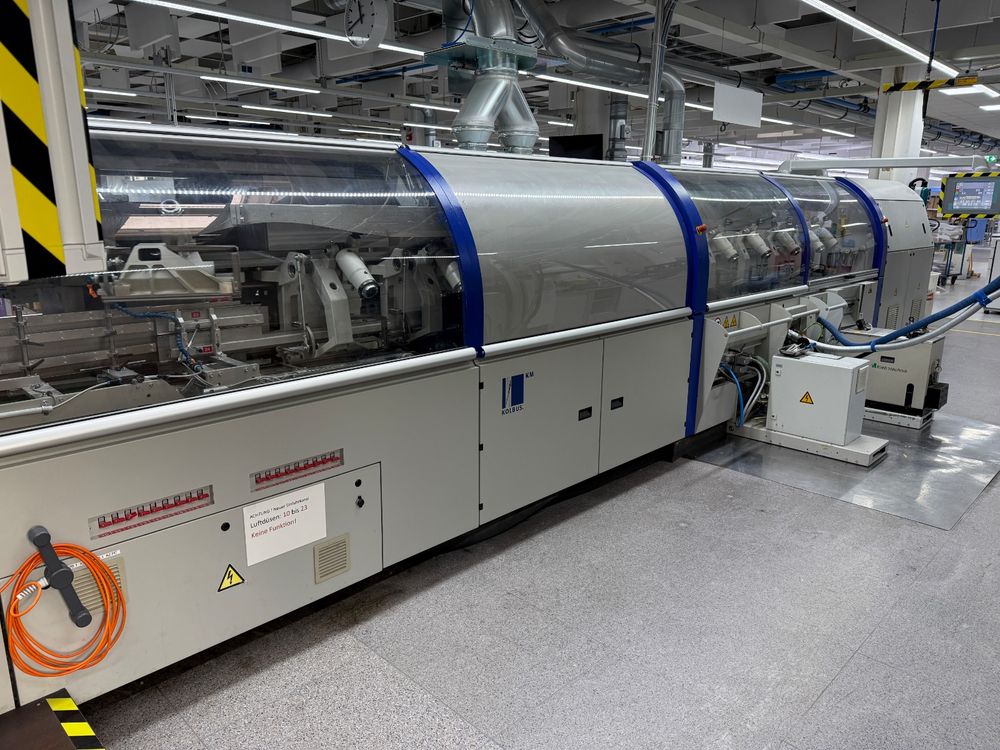

Perfect Binder Kolbus KM200
– Co-pilot with touch screen
– 26 clamps
– Infeed with handfeeding
– End sheet feeder
– 3 spine preparing units (milling, roughening and notching)
– Hotmelt nozzle spine gluing unit
– Nordson smelting unit (Premelter)
– Hotmelt nozzle side gluing unit with premelter
– Lining station
– IR heating at curve
– Rotary cover feeder
– Scoring station for 4 scores
– Pressing station
– Gripper carriage delivery
– Lay down device

Size range (book block):
Max. 310 x 380 x 60 mm
Min. 140 x 150 x 1,5 mm

Size range (cover):
Max. 680 x 380 mm
Min. 212 x 150 mm
Mech. speed: up to 3.500 cycles/h (handfeeding)
Transport and Drying Line (Drying Tower)
Length: approx. 30 meters
High Capacity Three Knife Trimmer HD 143D (4.6 Mio books)

With fully automatic 3D size adjustment for trimming of book blocks and brochures.
– Co-pilot with touch screen
– Right hand infeed
– 1. cutting cabin: front cutting
– 2. cutting cabin: side cutting
– 1 set of knives
– Knife setting gauge

Size range:
Max. 305 x 375 x 80 mm
Min. 100 x 120 x 1,5 mm

Size range: (untrimmed)
Max. 320 x 380 x 80 mm
Min. 120 x 150 x 1,5 mm
Mech. speed: up to 4.200 cuts/h

Compensating Kolbus Stacker
Size range:
Max. 320 x 420 x 80 mm
Min. 100 x 125 x 2 mm
Stack height: max. 330 mm
Mech. speed: max. 18.000 cycles/h (infeed)
