Kolbus KM 473

Condition Used
Perfect Binding Line

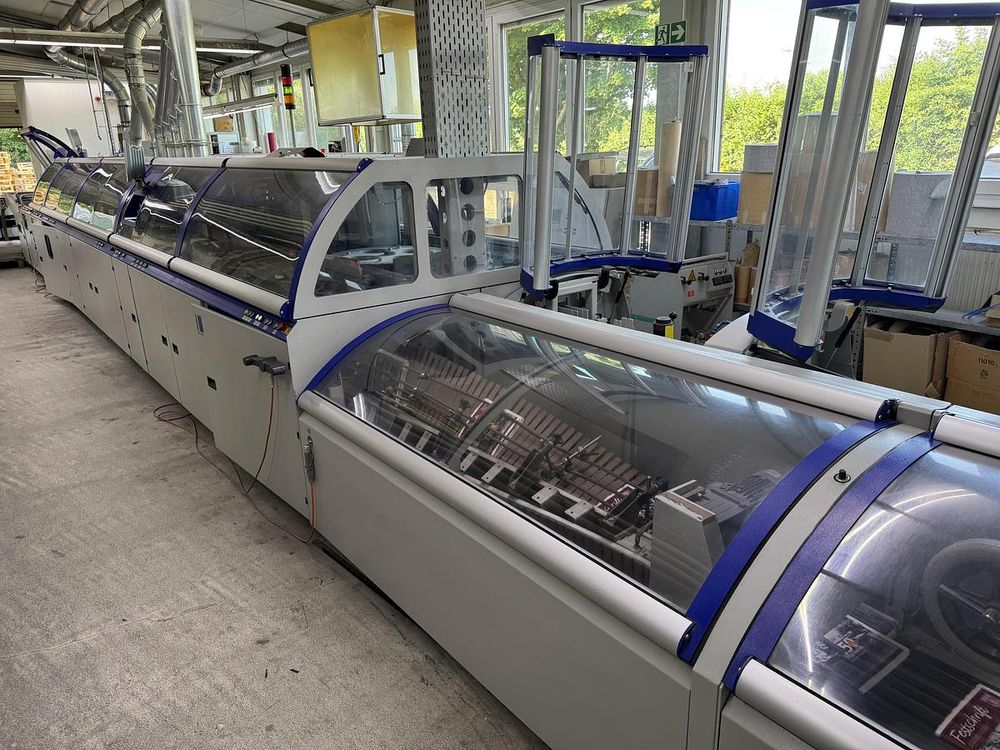

The KOLBUS KM 473 perfect binder in combination with the ZU 841 gathering machine is a variant that meets
short-term market development with quality, speed and versatility.
The innovative technology and high flexibility make it possible to switch on the fly between different large print runs and special products.

Overview:
ZU 841.A gathering machine | year 2005
KM 473 perfect binder | year 2005
FA 650 front cutting unit | year 2015
HD 143.P three knife trimmer | year 2015
KL 501 compensating stacker | year 2015

Configuration:
ZU 841.A gathering machine
handfeeding with block positioning conveyor
22 stations basic frame
1-15 standard feeder with barcode recognition system | signalynx
16-20 standard feeder with optoelectronic signature recognition system
transfer into the binder
pressure-vacuum pumps with Variair system

KM 473 perfect binder
copilot system with touchsreeen
27 clamps
main milling station
2 spine preparation stations | equalizing milling and micro notching
brushing station without dust extraction system (machine was connected to a central dust extraction system)
hotmelt spine gluing unit
premelter LH 370
hotmelt side gluing unit
PUR spine gluing unit incl. Nordson Durapail premelte
preservation unit Best for PUR
lining station
cover feeder SAL 411.A incl. miss- and double sheet control
2 pressing stations
gripper carriage delivery
lay down device

Technical specifications:
mechanical speed: up to 8.000 cycles/h
size range max: 383 x 320 x 70 mm
size range max: 460 x 190 x 70 mm
size range min: 105 x 100 x 3 mm
transport and drying line
incl. 2 cooling tower and emergency delivery

FA 650 front cutting unit
TFT touchscreen
special equipment for cutting two products during one cycle
vacuum belts to open the cover
opening control
cutting unit
knife setting gauge with dial indicator
machine start via block detection device and light barrier
servo-controlled drive technology based on Siemens SIMOTION D with through-feed mode

Technical specifications:
mechanical speed max: 4.000 cycles/h
cutting two products during one cycle:
feeding: max. 6.000 cycles/h with 3.000 cuts/h
size range trimmed max: 480 x 350 x 50 mm
size range trimmed min: 125 x 100 x 3 mm
size range untrimmed max: 480 x 375 x 50 mm
size range untrimmed min: 125 x 105 x 3 mm

HD 143.P three knife trimmer
right hand infeed
copilot with touch-screen
counter stacker
standard cutting tables no. 7-18
knife setting gauge
2 sets of knives

Technical specifications:
mechanical speed: up to 4.200 cuts/h
size range trimmed max: 420 x 305 x 80 mm
size range trimmed min: 100 x 100 x 2 mm
size range untrimmed max: 450 x 320 x 80 mm
stack height: max. 80 mm

KL 501 compensating stacker
delivery to the left - delivery conveyor
delivery to the right - roller delivery

Technical specifications:
mechanical speed max: 18.000 cycles/h (infeed)
size range max: 420 x 320 x 80 mm
size range min: 125 x 100 x 2 mm
stack height max: 330 mm
