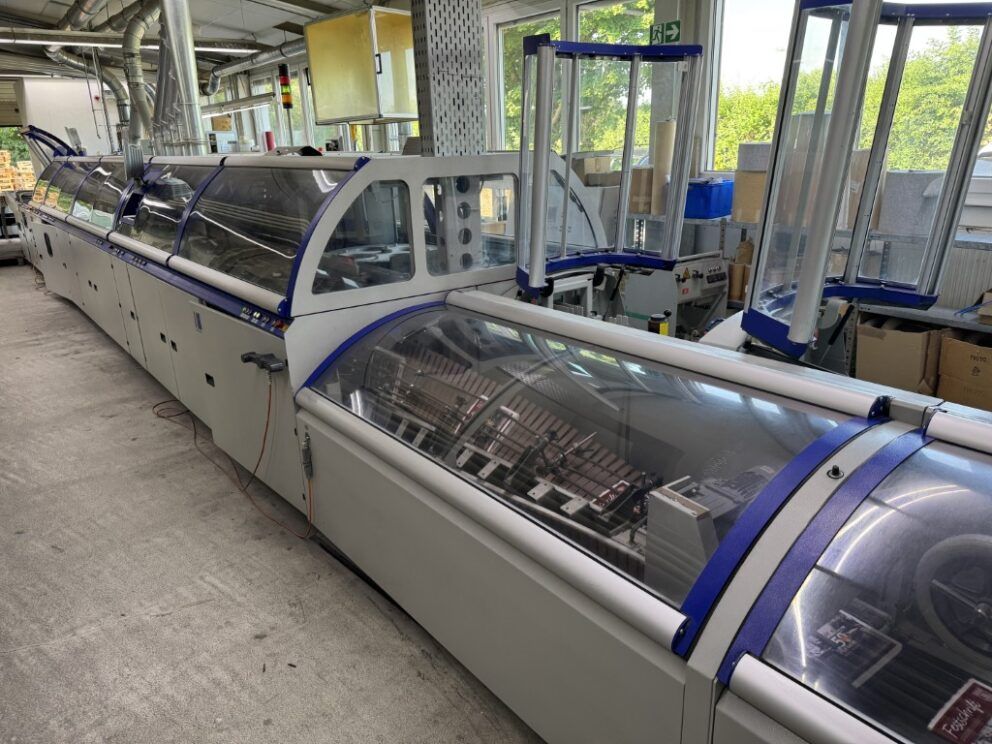

Kolbus KM 473

Perfect Binding Line
The KOLBUS KM 473 perfect binder in combination with the ZU 841 gathering machine is a
variant that meets short-term market development with quality, speed and versatility.
The innovative technology and high flexibility make it possible to switch on the fly between different large print runs and special products.
Kolbus ZU 841.A gathering machine

• handfeeding with block positioning conveyor
• 22 stations basic frame
• 1-15 standard feeder with barcode recognition system | signalynx
• 16-20 standard feeder with optoelectronic signature recognition system
• transfer into the binder
• pressure-vacuum pumps with Variair system

Kolbus KM 473 Perfect Binder
• copilot system with touchsreeen
• 27 clamps
• main milling station
• 2 spine preparation stations | equalizing milling and micro notching
• brushing station
• without dust extraction system (machine was connected to a central dust extraction system)
• hotmelt spine gluing unit
• premelter LH 370
• hotmelt side gluing unit
• PUR spine gluing unit incl. Nordson Durapail premelte
• preservation unit Best for PUR
• lining station
• cover feeder SAL 411.A incl. miss- and double sheet control
• 2 pressing stations
• gripper carriage delivery
• lay down device

Kolbus conveyor system
transport and drying line
incl. 2 cooling tower and emergency delivery

2015 Kolbus HD 143.P Three-knife trimmer
• right hand infeed
• copilot with touch-screen
• counter stacker
• standard cutting tables no. 7-18
• knife setting gauge
• 2 sets of knives

2015 Kolbus KL 501 Compensation Stacker
• delivery to the left – delivery conveyor
• delivery to the right – roller delivery

2015 Kolbus FA 650 Front cutting unit
• TFT touchscreen
• special equipment for cutting two products during one cycle
• vacuum belts to open the cover
• opening control
• cutting unit
• knife setting gauge with dial indicator
• machine start via block detection device and light barrier
• servo-controlled drive technology based on Siemens SIMOTION D
• with through-feed mode
