Kolbus KM 610.A

A Kolbus KM 610.A perfect binder is suitable for the production of perfect bound products like
brochures, journals, magazines and catalogues.

Kolbus ZU 832.A Gathering Machine
• short handfeeding unit at the end of the ZU
• 15 stations basic frame
• 15 feeders with automatic section thickness control ATC and signature recognition system
• reject unit AS 842.A to the left
• transfer channel as connection unit to the binder
• BECKER air center VARIAIR

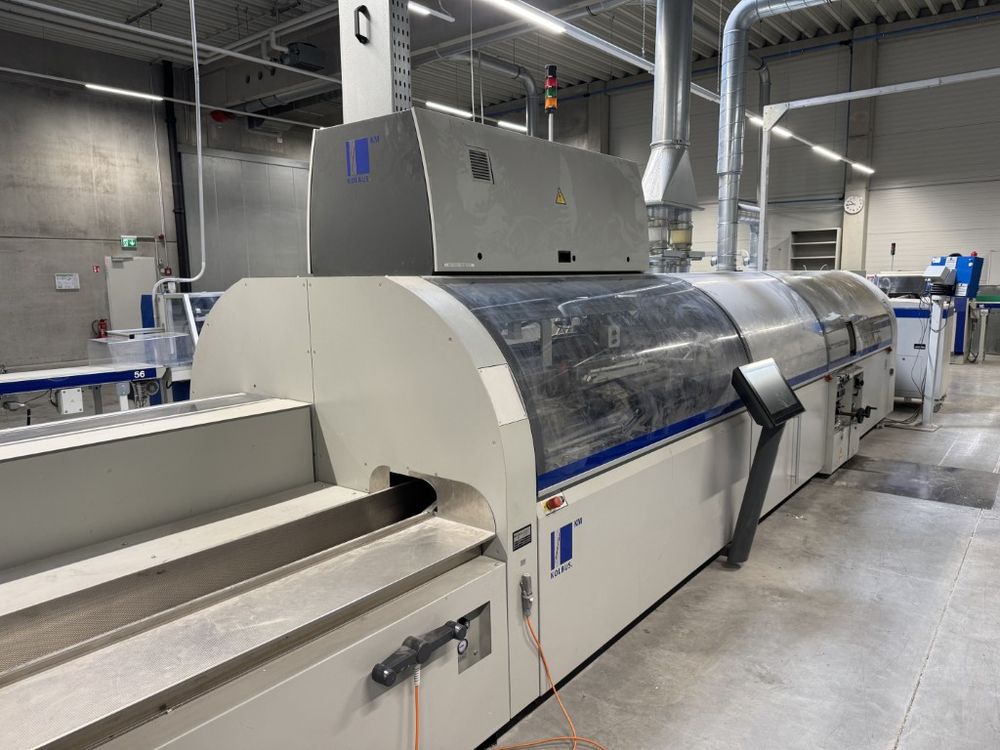

Kolbus KM 610.A Perfect Binder
• Copilot system with touchscreen monitor (SIEMENS)
• 21 clamps
• infeed with handfeeding unit incl. coupling to a ZU gathering machine
• main milling station
• 3 spine preparing units (equalizing, notching, brushing station)
• hotmelt spine gluing unit
• WST glue control system for spine glue
• premelter LH 375.B
• interchangeable PUR spine gluing unit
• NORDSON smelting unit (KOLBUS XNO 962)
• hotmelt side gluing unit
• stream cover feeder SAL 610.A with cover control unit
• scoring station for 4 scores
• 1st pressing station
• pressing roller
• 2nd pressing station
• straight delivery
• lay down device
• measuring table MT 600.A
• remote diagnostics terminal AFS 702.W (KOLBUS 3.60)

Conveyor system
• incl. AMBAFLEX cooling tower SPIRALVEYOR SV (KOLBUS XAF 661)
• incl. emergency delivery
• conveyor electrical cabinet TS.E
FA 650 front cutting unit

TFT touchscreen
• special equipment for cutting two products during one cycle
• vacuum belts to open the cover
• opening control
• cutting unit
• knife setting gauge with dial indicator
• machine start via block detection device and light barrier
• through-feed mode

Kolbus HD 143.P Three-knife trimmer
• Copilot system with touchscreen monitor
• right hand infeed
• standard cutting tables no. 4 – 18
• knife setting gauge
• cut counter
Special equipment:
• silicon-spaying device

Kolbus KL 501 compensating stacker
• Copilot system with two touchscreen monitors
• counter unit
• delivery to the right, coupling with a stack aligner
• straight delivery with delivery conveyor

SR 501 stack-aligner (year 2018)
• with integrated blocking unit
connecting conveyor belts (year 2016/2018)

PL 771.E palletizer (year 2018)
• device for automatic setting
• product feeding via accumulating conveyor
• turning paternoster 90° / 180° with cycle adjustment device
• pallet magazine
• slip sheet feeder
• left version, taking off the pallets on the left and pallet magazine on the right
• taking off the pallets in running direction
