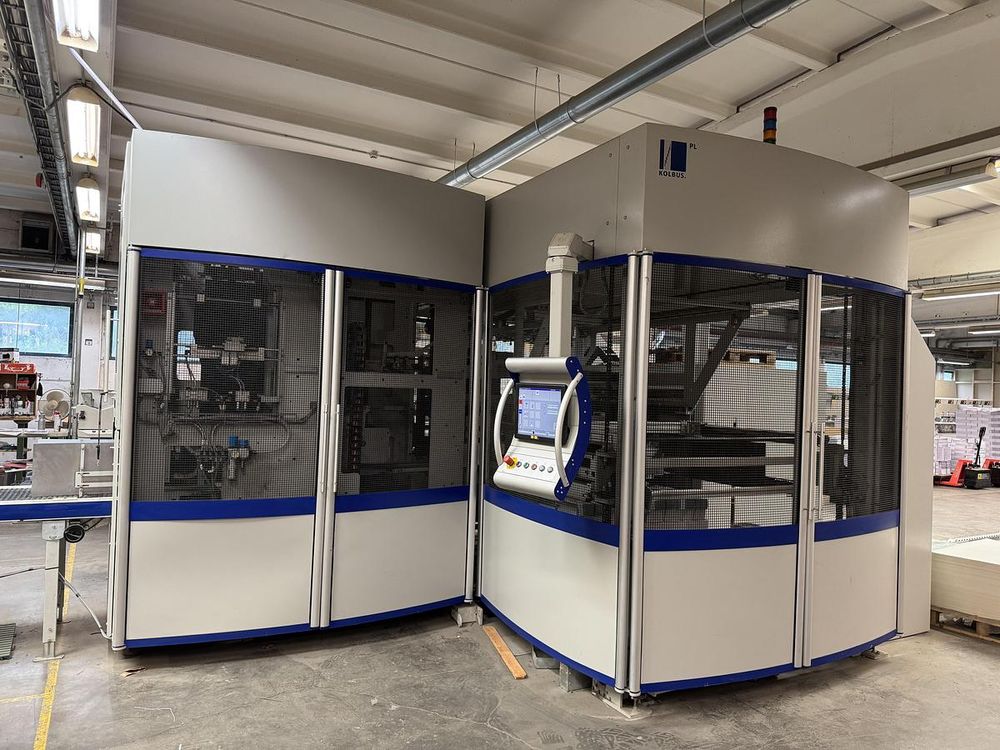

Kolbus PL 771 Palletizer

Fully automatic book and brochure palletizer for palletizing loose stacks and packing units.
Configuration:
device for automatic format adjustment
colour monitor with touch screen
product feeding via accumulating conveyor
turning paternoster 90° / 180° with cycle adjustment device
pallet magazine
slip sheet feeder
taking off the pallets in running direction

Technical specifications:
infeed speed: up to 30 piles/min
stack size max.: 563 x 406 x 350 mm
stack size min.: 150 x 100 x 25 mm
pallet size max.: 1.340 x 1.000 mm
pallet size min.: 1.000 x 800 mm
loading size min.: 900 x 700 mm
palletizing height max.: 1.600 mm incl. pallet
loading capacity max.: 1.500 kg/pallet
