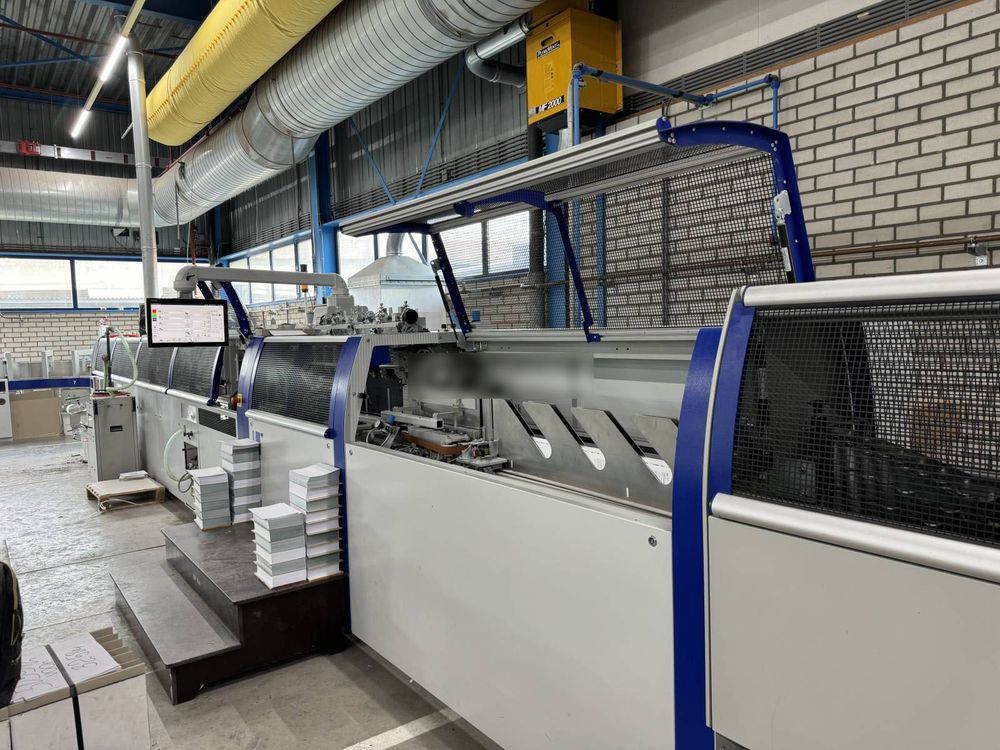

Kolbus RF 700

Equipment :
Book Block Feeder :
Kolbus TS.A Book Block Feeder (2016)
Pneumatic stamp for book heights up to 510 mm
Externally positioned control panel
Book block thickness range: 4–70 mm
Frame height: 850–955 mm

Endsheet Feeder :
2x Endsheet feeders (front cover feeder)
Dispersion (PVA) endsheet gluing
Automatic block thickness measurement

Backgluing and Backlining Machine :
Kolbus RF 700 (2018) configured for 70 cycles/min
Two-shot spine gluing configuration:
1st Spine Gluing Unit: PVA Dispersion (cold glue primer)
IR Intermediate Dryer (25.2 kW, 2,850 mm length)
2nd Spine Gluing Unit: EVA Hotmelt
Side Gluing Unit: PVA Dispersion (long variant)
Glue disc width: 8.8 mm
Gauzing / Lining Station
Forming station
Venturi nozzle for lining strip waste removal
Integrated fume extraction for gluing units
Connected to LH 375.B Hotmelt Premelter (30 liter capacity)

Drying Section:
Double-stream drying section
Dual conveyor configuration

Nipping Press:
Kolbus FN 720 (2016)
Double-line throughfeed (two channels)
Delivery height: 900 mm

Three-Knife Trimmer :
Kolbus HD 143.P (2016)
CoPilot system with touchscreen
Infeed from right side
Fine-grain carbide knives (3 sets)
Spray device
Small format capability: 70 × 100 mm (trimmed)
Standard cutting tables Nr. 04–18
Additional tables: Nr. 02 (100–112 mm), Nr. 03 (112–124 mm)
Tool cabinet included

Stacker :
Kolbus KL 301 Compensating Book Stacker
CoPilot system with touchscreen
Flexible delivery options (straight, left, right)
Counting device
