Kolbus, Sigloch BF527 + FE604 + HD142P + & SB3000

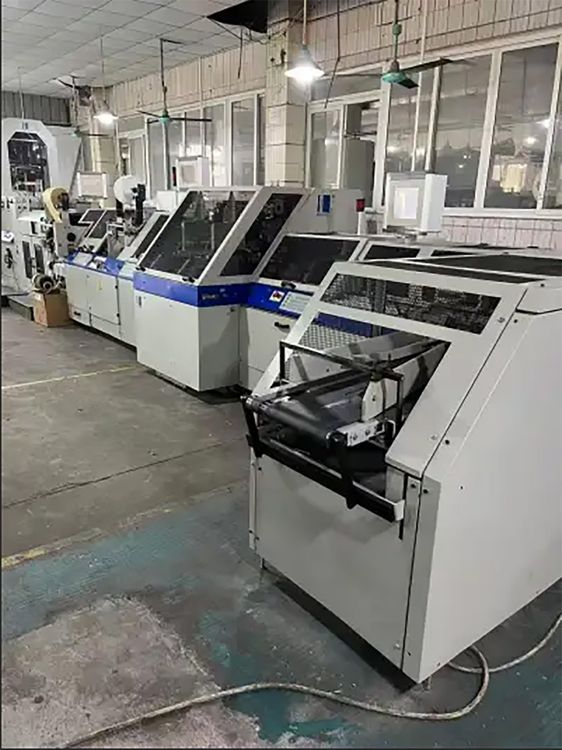

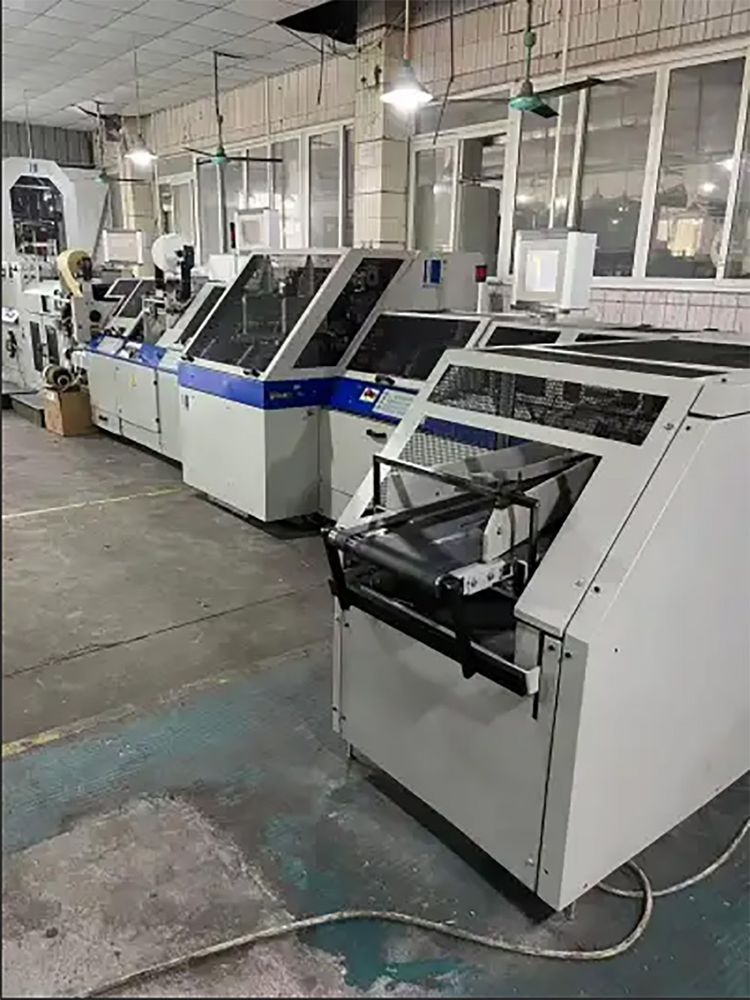

KOLBUS BF527 + FE604 + HD142P + SIGLOCH SB3000 Hardcover Binding Line
Size max:
280 x 375 x 80 mm
295 x 375 x 70 mm
300 x 375 x 60 mm
305 x 375 x 50 mm
size min: 100 x 100 x 2 mm
Extra Small Book Block Size (Non-standard):70 x 100 x 2 mm
Min. Unfolded Case Size:210 x 105 mm
Max. Unfolded Case Size:660 x 385 mm
Extra Small Unfolded Case Size (Non-standard):155 x 105 mm
mechanical speed: 60 cycles/min.
Copilot system with touch-screen monitor
rounding and backing station
Gluing station with premelter
gluing station with circulation and premelter
Robatech Hot-Melt device
Backing side
Gauzing station
head and tail bending station
2 gluing stations
Casing in the bookblocks BF 527
Book forming and pressing machine Kolbus FE 604
FE 604 Max Size: 315 x 385 x 90mm
FE 604 Min Size: 70 x 100 x 6mm
Pressing unit
Manuals and tools

SIGLOCH BOOK BLOCK LINE
year 1997
Specification :
Sigloch NHG Book Block Nipping & Smashing Machine
Nipping and smashing press designed for processing thread book blocks
Infeed Belt
1st Station Pressing on Both Sides
2nd Station Smashing of Book Block

Transfer unit to:
Sigloch VA End sheet tapping Machine
For the application of end papers to book block
with cold glue nozzles
2 x End Sheet Feeders
Gluing Station
Pressing Unit
90 Degree conveyour
Sigloch SB 3000 spine Gauze unit
Delivery conveyour with infrared heaters

Specification :
Max Size: 420 x 320 x 60cm
Min Size: 120 x 90 x 3cm
Max Speed: 70 cycles/hour
