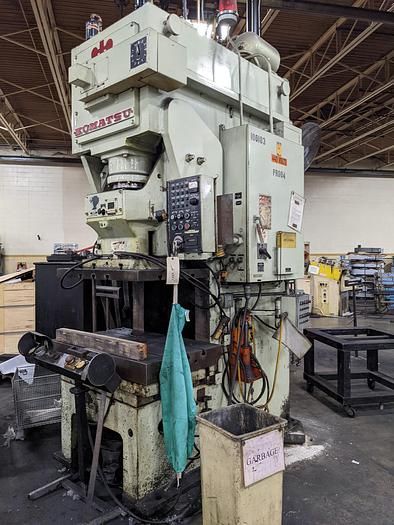

Komatsu 110-2 OBS 121 To

Stroke: 5.9′′
Slide Adjustment: 3.94′′
Shut Height (to top of bed): 18′′
Shut Height (to top of bolster): 15′′
Area of Bed L-R: 43.6′′
Area of Bed F-B: 27.6′′
Bolster Thickness: 3′′ T-Slotted
Area of Slide L-R: 23.6′′
Area of Slide F-B: 17.72′′
Shank Hole Diameter: 3-1/8′′
Throat Depth: 14.5′′
Opening Through Back: 22.8′′
Floor to Top of Bed: 36′′
Strokes Per Minute: 32–65 SPM
Motor Power: 15 HP
Voltage: 230/460V
Phase: 3 PH
Frequency: 60 Hz
RPM: 1765

Wintriss Clutch and Brake Control
Air Clutch System
Air Counterbalance System
Back Geared Type
Push Button Start/Stop Controls
Key Selector Switch (Inch / Off / Single / Continuous)
Motor Forward/Reverse Selector Switch
Power Ram Adjustment with Position Indicator
Automatic Oil Lubrication System
Oil Pump System
Crank Angle Indicator
Air Surge Tank
Knockout Slot in Slide
Production Counter
Dual Sensor Run Buttons for Clutch and Brake
Approximate Weight: 24,000 lbs
Approximate Dimensions: 64′′ x 87′′ x 134′′
