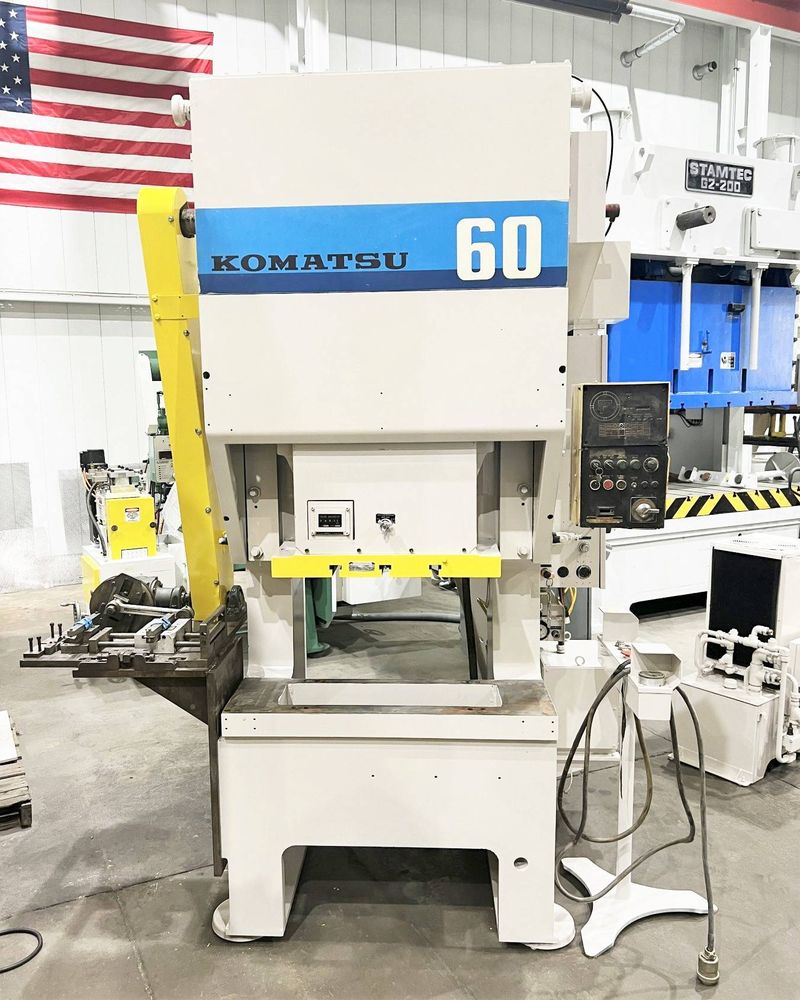

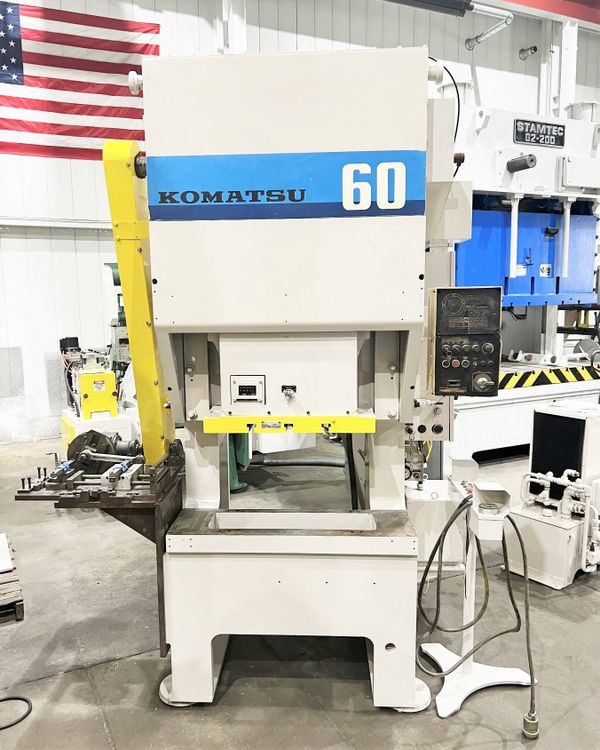

Komatsu OBP60 Press 66 US TONS

Komatsu OBP60 Press
Year: 1987

CAPACITY 66 US TONS
STROKE 2.75″
MAX DIE HEIGHT 11.8″ SDAU OVER 5.1″ THICK BOLSTER PLATE
BED AREA 41.7″ X 13″ (RL X FB)
SPEED 30 – 225 SPM
SLIDE ADJUSTMENT 2.75″
SLIDE AREA 27.6″ X 15.7″ (RL X FB) flanged ram
BOLSTER PLATE 41.73″ X 17.71″ (RL X FB) X 5.12″ THICK WITH 29.75″ X 6″ (RL X FB) HOLE IN CENTER
DISTANCE BETWEEN UPRIGHTS 28.25″
FLOOR TO BED HEIGHT 30.25″
THROAT DEPTH 10″
CLUTCH KOMATSU AIR CLUTCH / BRAKE COMBINATION
PRESS CONTROLS komatsu relay press control
ELECTRIC MOTOR 10 hp 1750 rpm 240/480v-3-60 motor
APPROX DIMENSIONS 90″ X 65″ (RL X FB) X 106″ HIGH OR 71″ X 65″ WITHOUT FEEDER
APPROX WEIGHT 15,000 lbs

Equipped With
oil cooler floor standing cast steel frame
TWO PLUNGER GUIDES FOR IMPROVED ACCURACY
