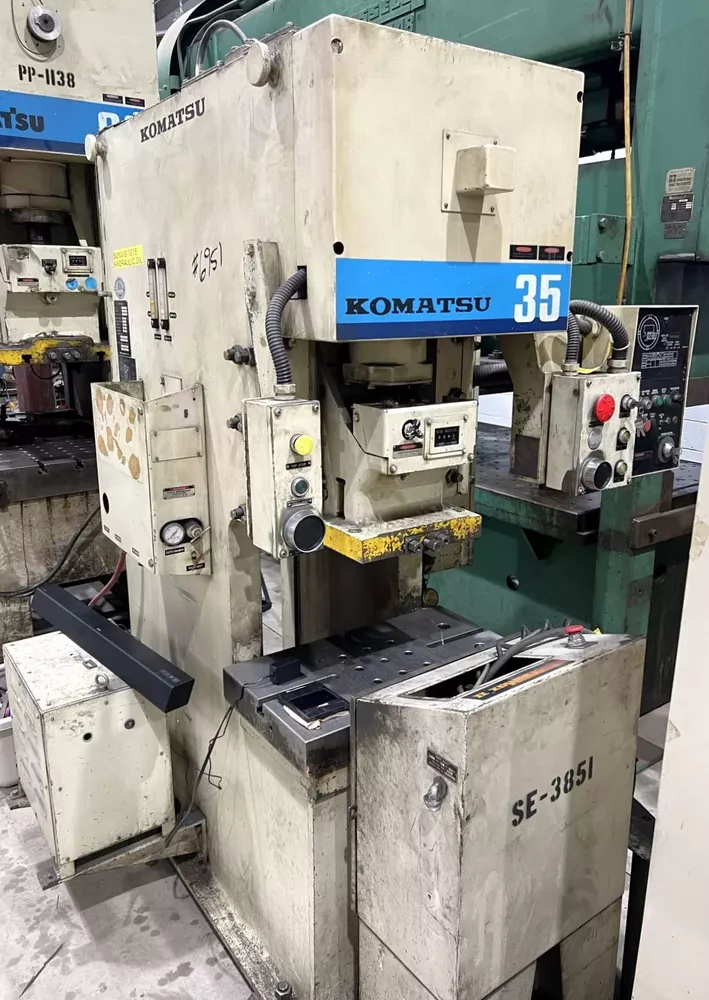

Komatsu OBS35-3 39 US tons

KOMATSU OBS35-3
Year: 1991

Capacity: 39 US tons
Stroke: 4.33″
Max. die height to bolster: 9.84″
Bed area: 27.56″ x 15.75″ (right to left x front to back)
Bolster plate: 27.56″ x 15.75″ x 3.39″ thick T-slotted plate
Slide dimensions/ram area: 13.78″ x 11.81″ (right to left x front to back)
Slide adjustment: 2.17″
Speed: 60-120 variable strokes per minute
Distance between uprights: 17.25″
Floor to bolster height: 31.5″
Clutch: Komatsu air clutch/brake combination
Press controls: Original Komatsu controls with crank angle display
Electric motor: approx. 5 HP
Approximate dimensions: 41″ x 60″ x 96″ high
Approximate weight: 5,750 lbs
Air counterbalanced ram
Plunger guide system
Hydraulic overload protector system
Eccentric drive in wet clutch for continuous lubrication of major drive components
