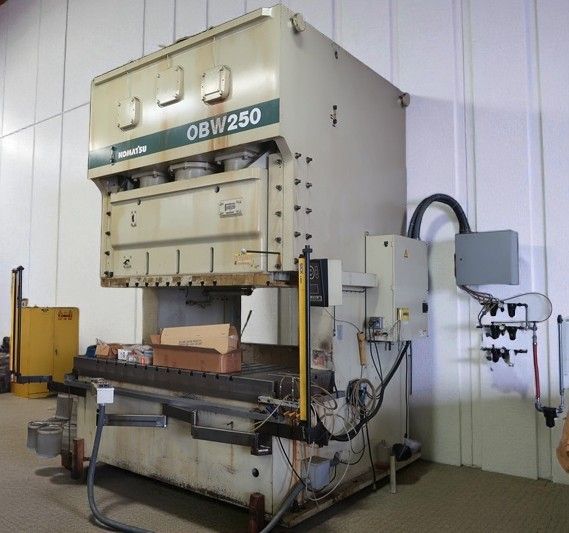

Komatsu OBW250-3 275 US ton

Press capacity 275 US ton
Stroke 11.8″
Die height 21.7″ over 7.1″ bolster
Bed area 106″ x 37.4″ (RL x FB)
Slide area 82.7″ x 27.6″ (RL x FB) T-slotted
Bolster size 106.2″ x 37.4″ x 7.1″ thick T-slotted
Slide adjustment 4.7″ motorized
Press speed 20–40 SPM
Distance between uprights 83.5″ RL
Floor to top of bolster 43.3″
Clutch Air-over-hydraulic wet clutch/brake combination
Drive motor 25 HP, 1750 rpm, 230/460 V, 3 phase, 60 Hz, eddy current drive
Machine dimensions 120″ x 108″ x 165″ high
Machine weight 76,000 lbs
Hydraulic overload protection
Eccentric gear drive
Plunger-guided slide
Automatic lubrication
Floor-standing design
Programmable limit switch (Link type)
