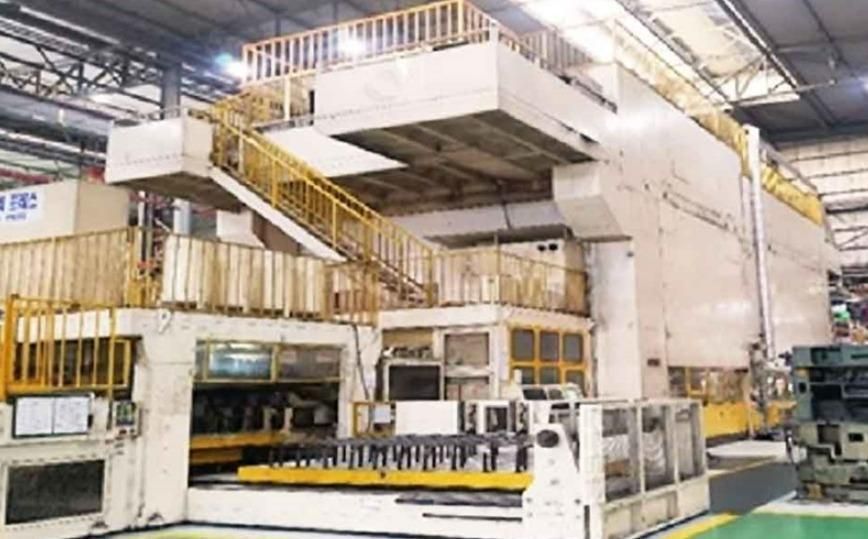

Komatsu SL4-3500 Double Action Transfer Press 1500 tons

Press force (total rated capacity): 3500 tons (3500 metric tons)
Upper slide capacity: 1500 tons
Lower slide capacity: 800 tons
Upper slide stroke: 1019 mm
Lower slide stroke: 1000 mm
Upper slide area: 4200 × 3600 mm
Lower slide area: 6300 × 3600 mm
Bolster area (lower): 6100 × 3600 mm
Die height (shut height): 1250 mm
Slide adjustment: 200 mm
8-point slide suspension system
Moving bolster travel: 2700 mm
Moving bolster forward drive force: 14 tons
Moving bolster backward drive force: 10 tons
Moving bolster positioning accuracy: ±0.05 mm
Moving bolster maximum die weight: 40 tons
Operating speed continuous: 6 – 14 SPM
Operating speed single stroke: 3 – 5 SPM
Die cushion capacity: 200 tons
Die cushion stroke: 300 mm
Power supply: 440 V, 3 phase, 60 Hz
Compressed air pressure: 4 – 5 kg/cm²
Cooling water flow rate: 100 L/min
Noise level (no load): ≤ 80 dB(A)
Lubrication oil tank capacity: 50 L
Accuracy classification: JIS 1st class
Condition: Good
