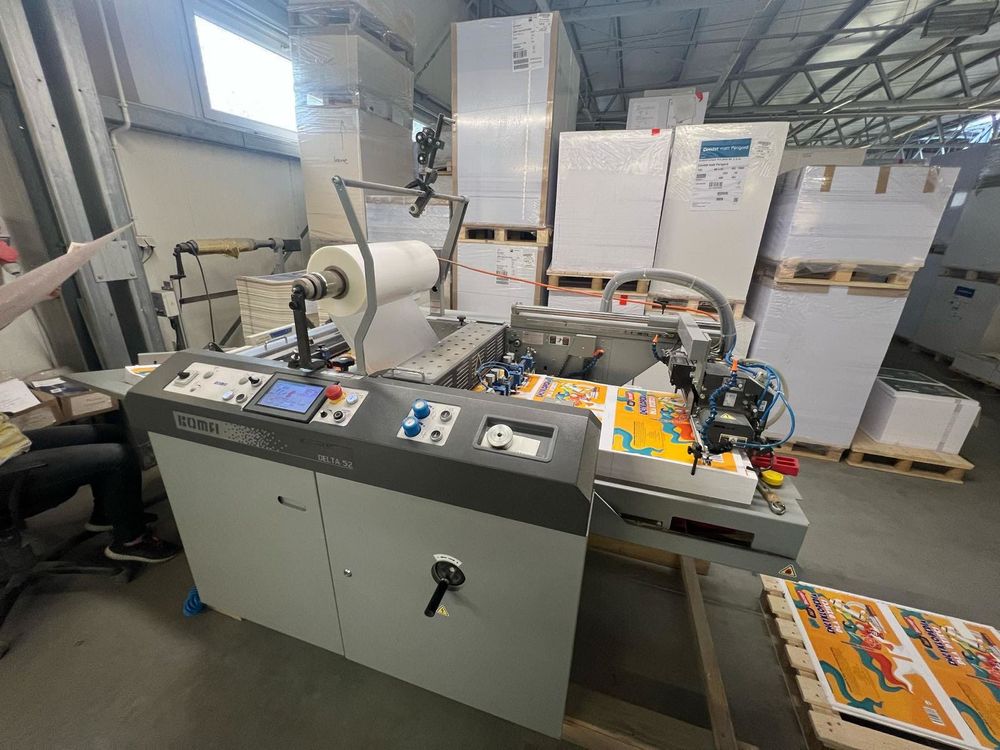

Komfi DELTA 52 Laminators Sheet

Automatic feeder with fixed lifting table
Single action Komfi feeding head
⁠Automatic sheet overlap control
>⁠Mis-feeding detection
⁠Laminating cylinder heated by 3-zone electro-resistance heater
⁠Temperature drop detection
⁠Air pressure decrease detector
Airshaft for film unwinding
Combined de-curling unit (bar and roller)
Automatic sheet separation using built-in perforator
Pneumatic snapping unit is electronically controlled
Speed adjustable separating roller
Sheet separation detector
Fixed delivery desk

Technical Parameters:
Maximum speed of lamination: 35 m/min
Maximum sheet dimensions: 54 × 76 cm
Minimum sheet dimensions: 20 × 20 cm
Paper weight: 115-600 g/m2
Thickness of laminating film: 24-50 pm
Kind of laminating film: OPP, PET, Nylon
Time of laminating roll warm up (25÷100 °C): 3 min
Sheet overlap accuracy (at constant laminating speed): 1 mm
Machine dimensions including delivery desk (L * W * H): 268 × 123 × 144 cm
Air supply: 6 bar
Air consumption at stable run: 60 l/min
