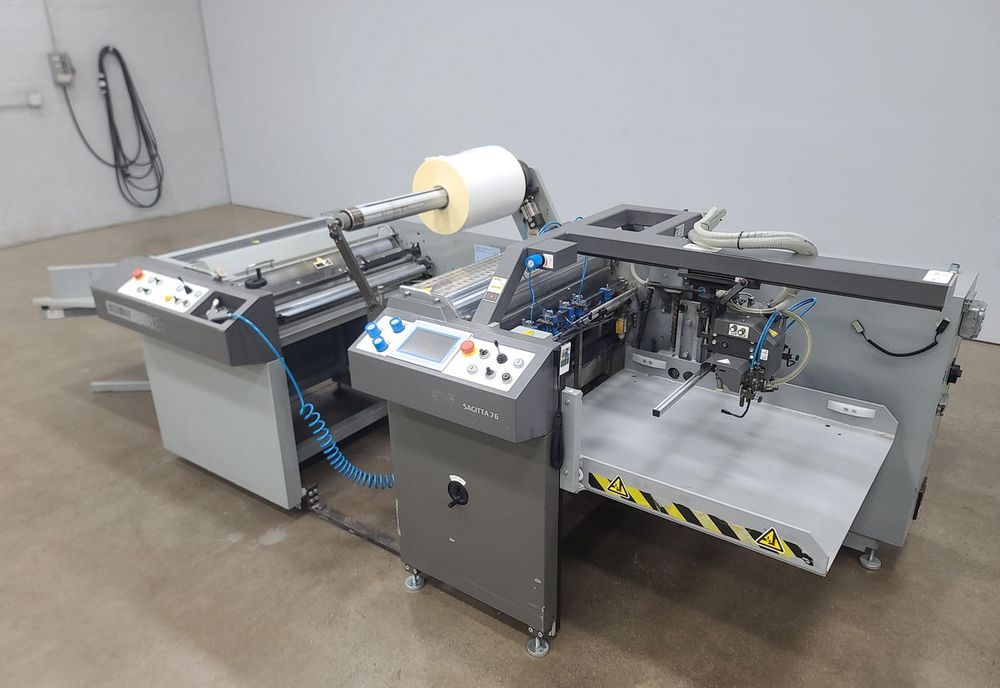

Komfi Sagitta 76 Pile Feed Single Sided Thermal Laminator

Features:
Automatic pallet feeder with dual-action Komfi feed head
Three-zone heated laminating cylinder for even heat distribution
Automatic sheet separation with rotary or hot knife and perforator
Adjustable de-curling unit for improved sheet flatness
Misfeed and temperature drop detection systems
Speed-adjustable separating roller

Typical Applications:
Commercial print lamination
Packaging and folding cartons
Brochures and marketing materials
Postcards and direct mail
Greeting cards and stationery

Technical Specifications:
Maximum Sheet Size: 29.92 in x 44.09 in (760 x 1,120 mm)
Minimum Sheet Size: 11.81 in x 8.66 in (300 x 220 mm)
Laminating Speed: up to 197 ft/min (60 m/min) rotary knife; up to 164 ft/min (50 m/min) hot knife
Paper Weight Range: approx. 80 lb text to 24 pt cover (115 – 600 g/m²)
Maximum Sheet Thickness: up to 0.06 in (1.4 mm) depending on overlap
Maximum Pile Height: 32.68 in (830 mm) including pallet
Maximum Load Capacity (Feeder): 1,452 lb (659 kg)
Film Types: OPP, PET, Nylon
Film Thickness: 1.0 – 2.0 mil (24 – 50 microns)
Film Core Size: 3 in (76 mm)
Maximum Film Roll Diameter: 13.78 in (350 mm)
Machine Dimensions: approx. 167 in L x 61 in W x 52 in H
Machine Weight: approx. 3,131 lb (1,420 kg)
Power Requirements: 3 phase, 208–230V, 45 amps
Power Consumption: approx. 9.5 kW
Air Requirements: 90–135 psi clean, dry air; approx. 2.5 CFM
