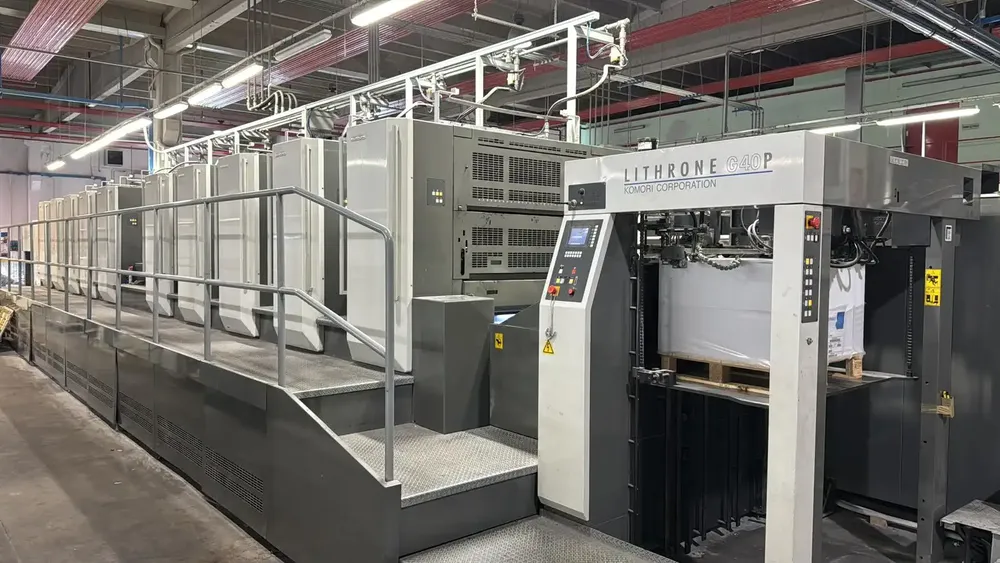

Komori GL 40-10 P H 720 x 1030 10

Max sheet size 720 x 1030
Min sheet size 360 x 520
Max print size 710 x 1020 (700 x 1020 perfecting)
Material Thickness 0,06 - 0,6 mm
Plate size 800 x 1030

Console:
PQC-S: touch console for ink, axial, circumferential diagonal + all wash-up remote control, etc.
KMS V : Komori Monitoring System (Jobs, Report, Manteinance, Errors)
KHS-AI : Komori High Performance System - Advance Interface for Self-learning Function
PDC-SX: Auto Tracking Spectrophotometer Control
KID SCREEN: Wide Screen Komori for operative informations connected to KHS-AI and PDC-SX
K-Station
K-Navigator
AMR (Automatic Make Ready): automatic preset for pressure, size format, autoplate, ink, etc,.

Feeder:
Antistatic on feeder
Suction belt on table feeder
Preset : automatic size adjusting on feeder
Mechanic double sheet control
Ultrasonic double-sheet control
Pile alignment on feeder
Pneumatic side lay
Preset for lateral blower air
Double feeler foot with antistatic ionizing blower
Micrometric adjustment of the lateral pull pay by touch panel +/- 3 mm.
Optical fiber precision photocell system for front and side control + safety photocell for the sheet in advance
Paper deformation compensator placed on the infeed cylinder with remote control
Diagonal movement of the sheet grip mm. 0.3 on feeder with remote control
Automatic machine lock through over-register sensor
Mechanical sheet stop in case of misregistration or crooked sheet

Printing Units:
Technotrans Beta.c ink temp control combined with damping refrigeration + Automix
Komorimatic damping
Automatic roller wash-up device
Automatic blanket washers with cloth
Automatic impression cylinder washers with cloth
Double diameter impression cylinders with anti-rust treatment
Solid transfer cylinders
Plate cylinders with anti-rust treatment
Blanket cylinders with anti-rust treatment
Sheets guide on transfers after the perfecting
Adjustment of the height of the strokes of the transfer gripper' bars
Speed ​​Reduction : dampening roller with reduced peripheral speed
Unhinging of the manual dosing roller only on the motor side
Inks disconnect device in all the units
Inking unit with remote distributor-roller adjustment between gripper and tail
3 Ink Oscillating Form Roller Refrigeration complete with ink temperature control
Ink ductor drum motorized
A-APC asynchronous plate change asynchronous in 75 sec.
8/0 ; 4/4 Fully Automatic perfecting device
Pressure Preset
Size Preset
Anti carryover rollers B and C with manual on / off insertion system

Delivery:
Sheet decurler
Antistatic in delivery
Motorized, programmable grippers opening command cam adjustment with speed compensation in delivery
Commands for attaching / detaching inking rollers and wetters for rapid de-inking
