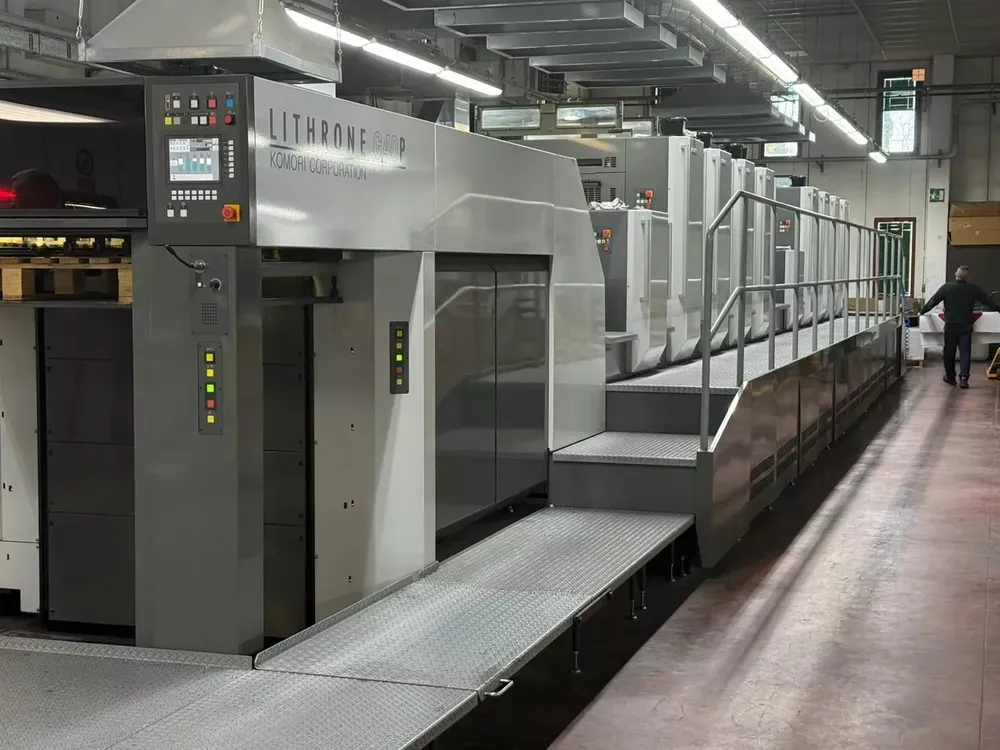

Komori GL840P-CX HUV 28x40"

Eight-color 28x40" offset press with:
Print Quality Console:
AMR Command
PQC-S - Remote control console
Machine status visualization
Wash settings (blanket, roller, cylinder)
PQA-S – camera inspection system
KHS-AI - Intelligent system with self-learning function for de-inking and pre-inking activities.
Daylight lamp above the PQC-S
PDC-SX Spectrophotometric Quality Control (integrated type)
KID - Komori information display system.
KMS V Monitoring System
Automatic Blanket washer with 4 different washing programs
Automatic Impression cylinder washer with 4 different washing programs
Automatic Roller washing with 4 different washing programs
Automatic coating unit washing system

Printing Unit
Automatic plate change (FAPC) without tail bending and with programmed sequence
Plate mounting accuracy of 0.05 mm. Plate changes do not require operator presence.
Plate cylinders with anti-rust treatment
Blanket cylinders with anti-rust treatment
Double-diameter impression cylinders with anti-rust treatment
Ink mist extraction system for each printing unit.
Set for printing on plastic or metallic substrates

Delivery:
Antistatic bar at the exit
Cam adjustment with motorized gripper opening, programmable and with speed compensation
Start/stop dampening controls
Start/stop inking controls
Ink and dampening roller engagement/disengagement control for fast de-inking

Ink & Dampening System
Dampening liquid level sensor
Mechanical compensator for roller contact - Ensures consistent contact between rollers.
Cooling system for three oscillating inking rollers with temperature control unit
inking stability at any print speed, including long runs.
Remote ink distribution control between front and back rollers
Motorized ink fountain roller
Remote control of take-up roller timing
Anti-ghosting rollers for B and C with manual on/off system
Dual-purpose rollers replacing conventional ones (for HUV and/or UV printing)

Coating Unit
Inline Coater System Type V with 2000 mm extended exit
Remote control for washing, registration, and paper thickness
Exit anti-shadow grippers
1 Anilox chamber system with 1 anilox roller
1 Varnish circulation unit
Blanket clamp opening/closing for each coater without tools

Sheet Feeding
Steel pallet plate
Diagonal movement of the sheet pickup mm. 0.3 with remote control
Automatic pile side control
Pneumatic squaring
Double sensing foot with ionizing antistatic blower
Preset of side blowers
Antistatic bar
Feeder table with suction belt
Format presets
Mechanical double-sheet control
Ultrasonic double-sheet control
Micrometric adjustment of the side squaring via touch panel +/- 3 mm
Fiber optic precision photocell system for front and side control + safety photocell for early sheet detection
Automatic machine stop via over-register sensor
Mechanical sheet stop in case of misregistration or skewed sheet
Paper deformation compensator placed on the feed cylinder with remote control
Machine elevation setup of 300 mm (excluding foundation block)

HUV System is equipped as follows:
End of press: 1 lamp (H-UV lamp and a conventional UV lamp)
Drying unit: 1 lamp (H-UV lamp and a conventional UV lamp)
Interdeck: 3 interdeck lamps moveable between 5 positions (H-UV lamp and a conventional UV lamp)
