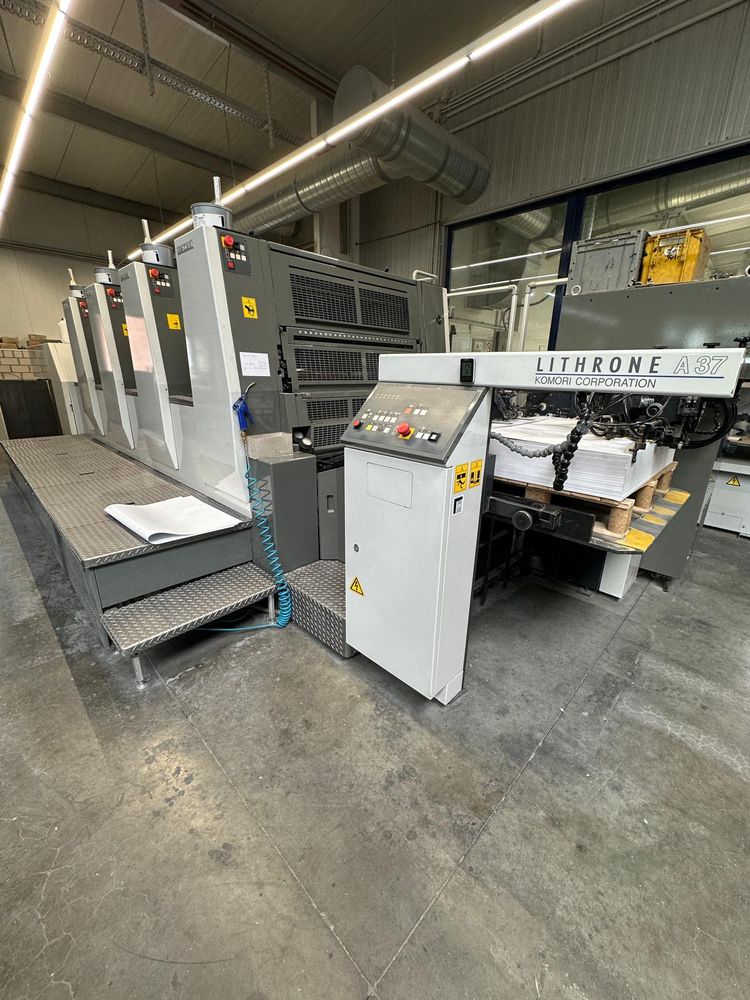

Komori LA-437 640 × 940 mm

PQC-U control console with touchscreen
KOMORI KHS-AI system for makeready optimization, automatic wash-up/ink preset
SmartFeedback for density adjustments (with PDC-Lite II)
AMR (Automatic Make Ready) for preset job changes
Production quick-start function
Remote register and transfer cylinder adjustment
Automatic setting of sheet format, suction head, side lays, delivery, and stock thickness
S-APC: semi-automatic plate change (no plate bending required)
Antistatic blower at feeder head, Side blowers (feeder)
2-zone suction tape feed table
Pneumatic stop fingers
Mechanical & ultrasonic double-sheet detection
Max. sheet size: 640 × 940 mm
Min. sheet size: 297 × 420 mm
Max. print size: 620 × 930 mm
Plate size: 700 × 945 mm (thickness: 0.30 mm)
Blanket size: 800 × 955 mm (barred)
Substrate thickness: 0.04 – 0.6 mm
Gripper margin: 10 mm
Plate clamp margin: 45 mm
Max. printing speed: 13,000 sheets/hour
Pile height feeder: 800 mm
Pile height delivery: 900 mm (*depending on paper, ink, and operating conditions)
Length: approx. 8,169 mm
Width: approx. 3,320 mm (without peripherals)
Power consumption: approx. 53 kW / 50 Hz (without peripherals)
