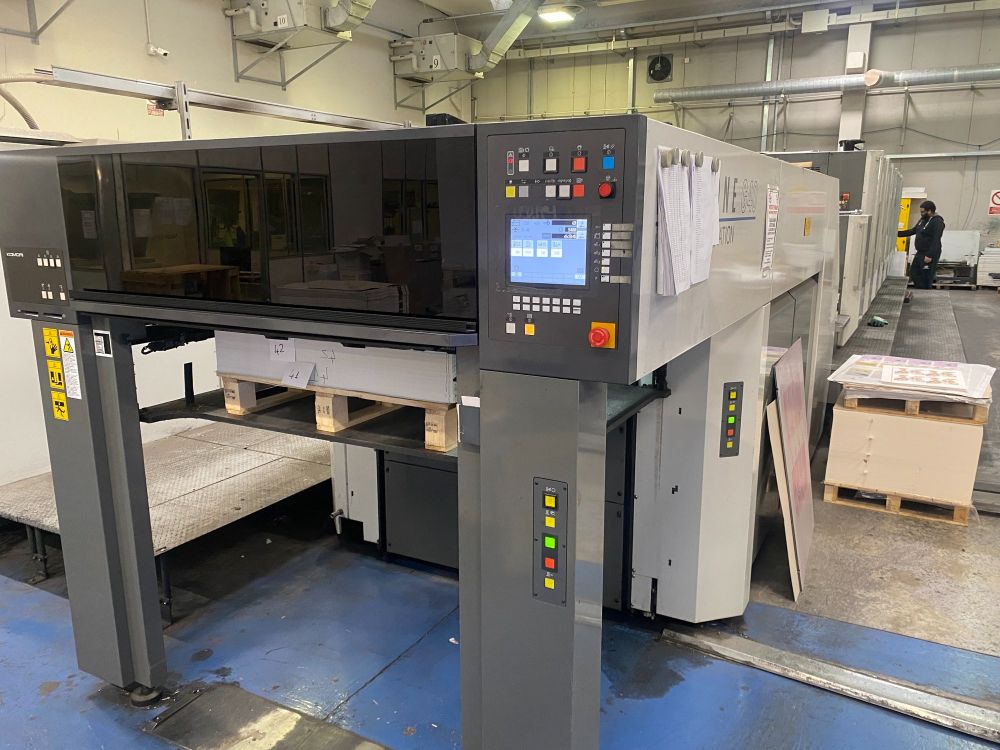

Komori LITHRONE G640 H 72 x 103 cm

CONFIGURATION :
Six-color sheetfed offset printing press (6 colors)
Format: 72 x 103 cm
With inline coater

Technical Details:
Maximum printing speed: 16,500 sheets/hour
Minimum printing speed: 3,500 sheets/hour
Maximum paper size: 720 x 1030 mm
Minimum paper size: 3.6 x 5.2 cm
Paper thickness range: 0.06 – 1.0 mm
Maximum printing area: 710 x 1020 mm
Plate size: 800 x 1030 mm
Blanket size: 920 x 1040 mm
Feeder pile height: 1,150 mm
Delivery pile height: 1,150 mm

FEEDER:
Steel pallet plate
Non-stop feeder (manual)
Automatic lateral stack control
Pneumatic side lay
Double sheet control (mechanical + ultrasonic)
Antistatic system
Suction belt feeder table
Format presetting
Micrometric side lay adjustment via touch panel
Photocell inspection system
Automatic stop for misregister

DAMPENING AND INKING SYSTEM :
Komorimatic continuous dampening system
Dampening circulation and cooling unit
Additional dampening rollers (one set per unit)
Oscillating rollers with temperature control
Motorized ink duct roller
Remote ink distribution control
Anti-carry rollers
Roller contact compensation system

PRINTING UNITS:
Automatic Plate Change (FAPC)
Plate, blanket and impression cylinders with anti-rust treatment
Double diameter impression cylinders
Skeleton transfer cylinders with air system
Remote register control (axial, circumferential, diagonal)
Pressure presetting
Format and air presetting
Bridge roller system

Coating Unit:
Inline coater with extended delivery (2000 mm)
Tresu chamber doctor blade system
1 anilox roller
Tresu varnish circulation system
Remote control of coating parameters
MONITORING SYSTEM

Control System:
PQC-S control console
