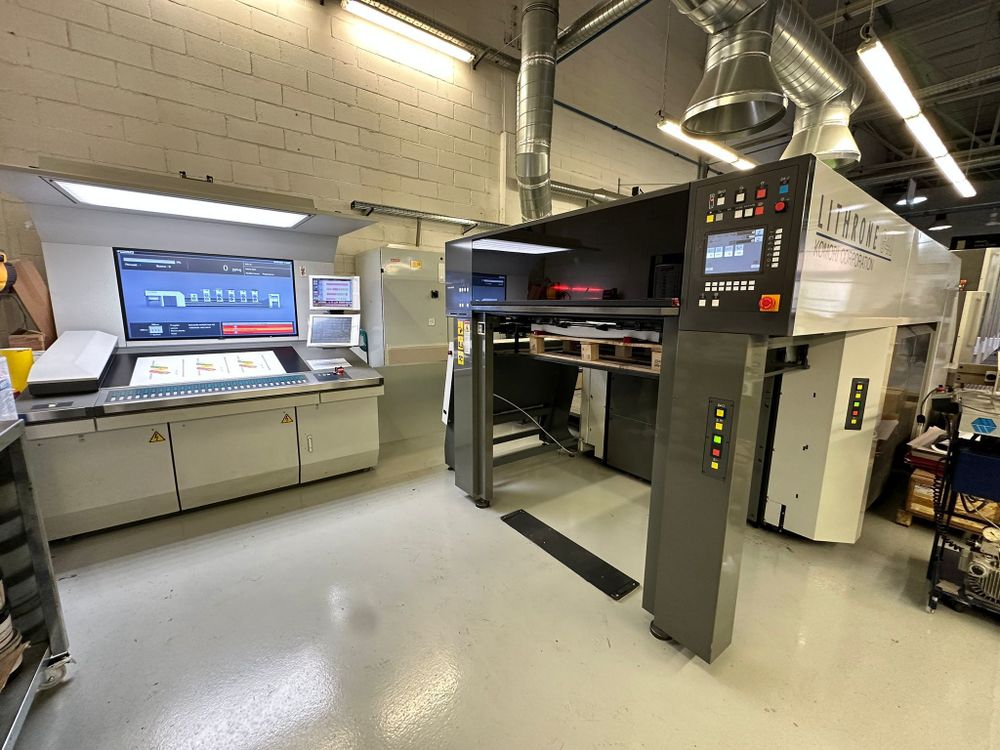

Komori Lithrone GL 540+C 730x1030 mm

Max. paper size: 730x1030 mm
Smallest size: 360x520 mm
Image area: 710x1020 mm
Speed: 16500 sheets/h.
Length: 10500 mm
Stock thickness: 0.6- 1.0 mm
Colors: 5+L
Model GL 540 + C H-UV
2 lamp on the delivery: one UV and 1 UV/HUV with switch
PQC-S Print Quality Control
PDC-SX closed loop printing density control with spectrophotometer
Skeleton transfer cylinders
Wallscreen control - KID info service display
KHS- AI advanced interface
High speed start up and make readySmart sequence with self-diagnosis
Single suction belt feeder
Paper thickness presetsSideways control in feeder
16,500 SPH
Komori High speed start-up (AMR)
KHS- AI Advanced - with Pre Inking and De inking
Anti ghosting roller on all units
Attachment for cardboard printing to 1mm thickness
Baldwin H-UV Drier with one cassette interchangeable
Ink/ damper declutch on 1st and last unitno IR Dryer
KOMORIMATIC dampening system
KMS Komori Management System
Vacuum feed-board
Powder sprayer
Extended Delivery
Anilox Tower Coater
PQC Print Quality Control
FAPC automatic plate change
ITC Ink temperature control
