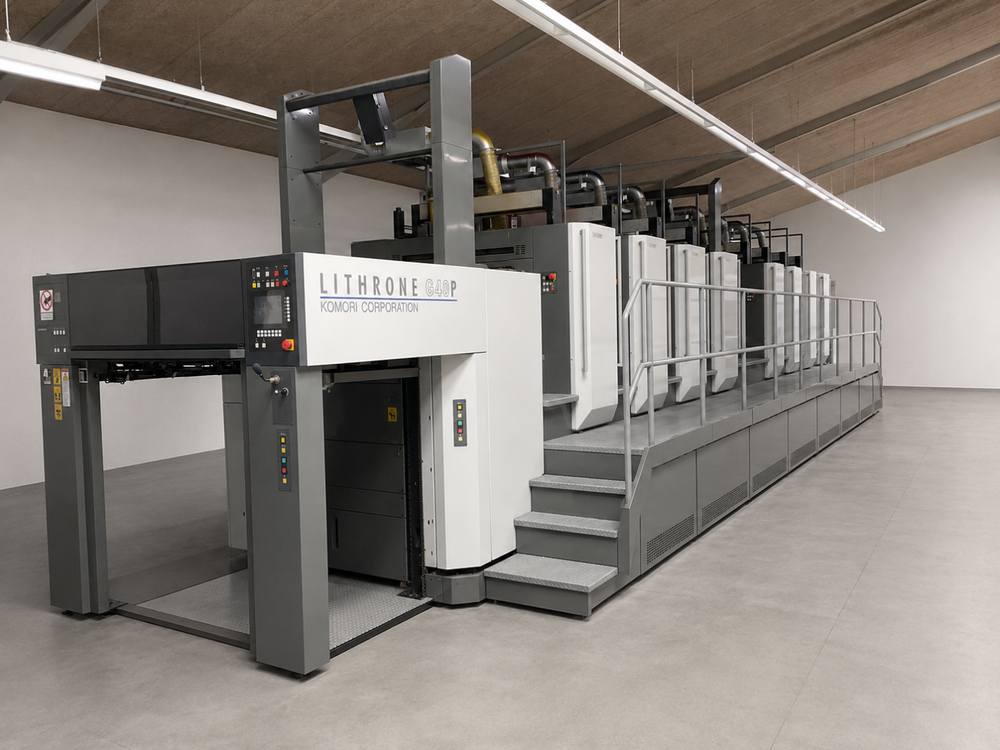

Komori Lithrone GL-840P H-UV 72 x 103 cm

Colours: 8
Format: 72 x 103 cm
Printing configuration: 8+0 / 4+4
Perfecting: Automatic convertible perfecting system
Max. speed: 15,000 sheets/hour
Max. paper thickness: 0.60 mm
Control system: PQC console
Impressions: 155 million

Equipment and Features :
Plate Changing System :
A-APC fully automatic simultaneous plate changing system
Chrome-plated plate cylinders
First register accuracy minimum 0.05 mm
No plate bending required
Complete plate change in approx. 75 seconds

Feeder and Sheet Control:
Infeed cylinder with sheet cocking and fan-out compensator
Register cocking adjustment from PQC console: +/- 0.20 mm
Suction belts on feed table
Pneumatic side lays
Automatic lateral alignment of feeder pile
Automatic control of feeder pile height
Automatic adjustment of feeder, side blowers, lays, delivery and printing sequence from PQC console
Automatic feeder height adjustment

Inking and Dampening System :
Komorimatic dampening system
Reduced speed on plate dampening rollers
All ink and dampening rollers are Westland rollers
Automatic roller washing system
Cooling integrated in ink oscillating rollers and ink ductor rollers
Technotrans Beta C 280G cooling unit for temperature control of ink oscillating rollers and dampening units
External Free Cooler unit with pump
Technotrans Ink-Line system for automatic ink supply to 8 printing units

Washing Systems :
Automatic blanket washing system, pre-pack type
Automatic impression cylinder washing system, pre-pack type
Automatic roller washing system

Perfecting System :
Automatic convertible perfecting system
Double-diameter 3-cylinder perfecting system
Convertible from 8+0 to 4+4
Changeover time approx. 2 minutes

H-UV Drying System

Komori/Baldwin H-UV System:
Ozone-free H-UV drying system
Equipped with 2 H-UV lamps
One H-UV lamp before the perfecting unit
One H-UV lamp in the delivery
One additional set of H-UV lamps included with the machine

Quality Control and Automation
PDC-SX Print Density Control:
Spectrophotometric measuring system
Installed directly on the PQC control console
Control strip can be positioned freely on the printed sheet
Automatic register control by scanning the printed sheet

KHS-AI Komori Hiper System :
Ink preset program for fast achievement of correct ink film on rollers
Storage of air settings
Self-diagnostic system for data collection
Helps reduce makeready time and waste

PCC Software for JDF :
PCC software for JDF workflow integration

Komori Management System IV :
Integrated management system for collecting job data

Simultaneous Ink Key Preset :
All ink keys are preset simultaneously during plate change

PQA-S Monitor System with KID Display:
Sheet inspection system for detecting printing defects
Density control during production
KID Komori Information Display
Large monitor mounted on the PQC wall

Video Scope System:
Camera monitoring of sheet transport through the machine
Supplied with 2 cameras

Inker-Roller Separation Function :
Ink rollers stop ink transfer automatically in case of paper stop
