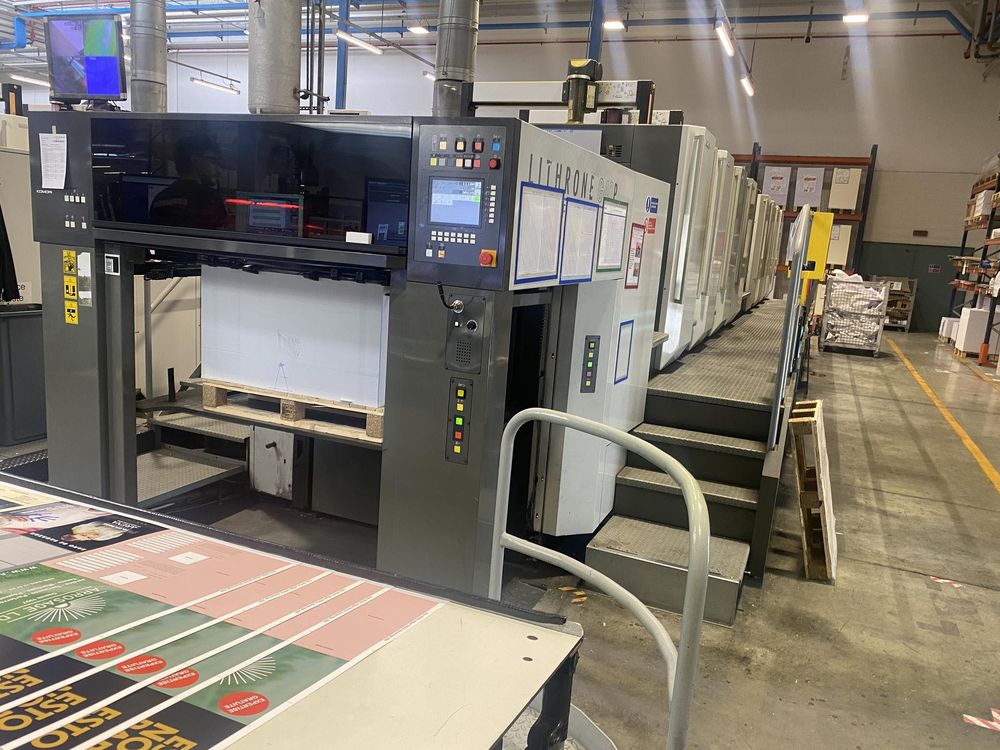

Komori LITHRONE GL 840PH H-UV LED 720 × 1030 mm

200 mill imp
Maximum Printing Speed: 15,000 sph
Maximum Sheet Size: 720 × 1030 mm
Minimum Sheet Size: 360 × 520 mm
Sheet Thickness Range: 0.06 – 0.6 mm
Maximum Printing Area: 710 × 1020 mm (face side) / 700 × 1020 mm (back side)
Plate Size: 800 × 1030 mm
Feeder Pile Height: 1450 mm (without 300 mm plinth)
Delivery Pile Height: 1380 mm (without 300 mm plinth)
Control & Automation
PQC-S off-press controls with USB/CF media input and overhead lamp
High-speed start-up & smart sequence
Self-Diagnosis II
KHS-AI with pre-inking/removing, self-learning, production management, and register preset
Smart Feedback system
Front/back ink keys simultaneous preset (all units)
Fully automatic plate changing (benderless)
Feeder side blower preset & anti-static system
Automatic blanket cleaner and impression cylinder cleaner (H-UV/pre-pack)
PDC-SX spectrophotometer with auto register control
KID (Komori Info-Service Display)
K-PressNavi integration
Printing & Feeding
Transfer cylinder cocking and gripper pad height adjustment
Anti-rust treatment for plate, blanket, and impression cylinders
Impression cylinders with stainless steel jacket after perfecting unit
Ink roller temperature control (oscillation) and automatic ink roller cleaning (twin nozzles)
Komorimatic dampening system with advanced controls
Technotrans Beta.c 280G with alcohol and pH control
Baldwin H-UV LED curing: 1× H-UV LED at end of press, 1× H-UV LED before perfecting unit
Drying & Delivery
H-UV drying preparation and equipment
Automatic lubrication on delivery chain guide
Delivery anti-deviation device and anti-static bar
Intercom system
The press is offered in excellent working condition,
equipped with H-UV LED technology, and ready for inspection and immediate availability.
