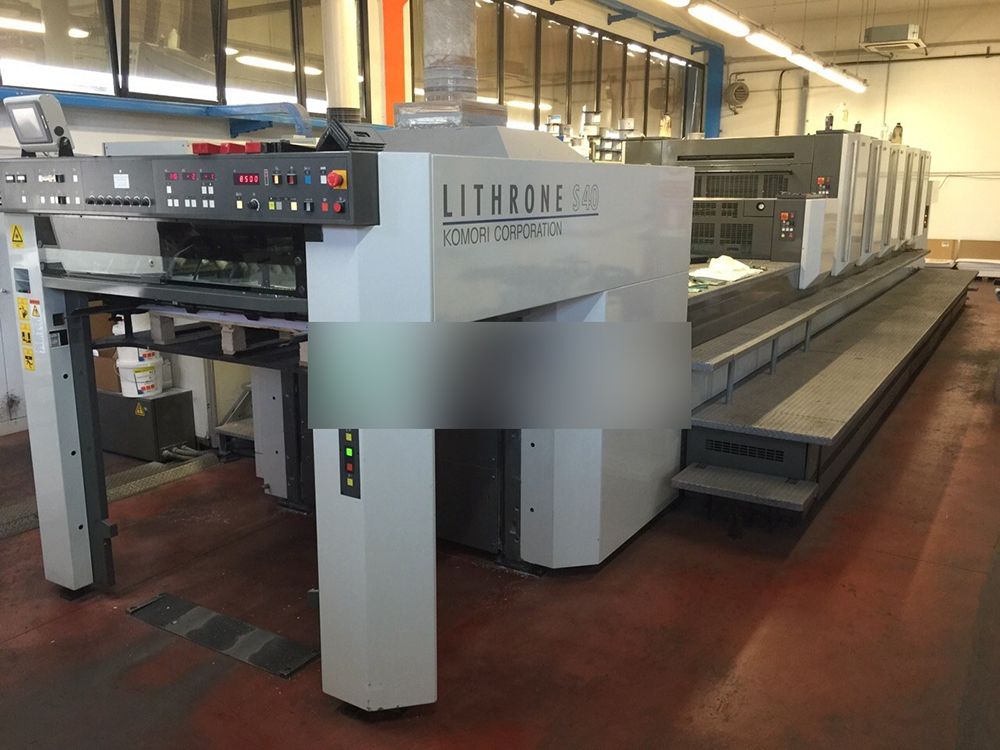

Komori LITHRONE LS 540 LX 5 720 x 1030 mm

Technical features:
Speed: 16.000 sheet/h
Max paper size: 720 x 1030 mm
Min paper size: 360 x 520 mm
Tickness: 004-01 mm
Print area size: 705 x 1030 mm
Plate size: 800 x 1030 mm tickness:030 mm
Blancket size: 900 x 1040 mm tickness:190 mm
Dimensions:
L. 144 mt.
P. 36 mt.
H. 20 mt.
Power requirement: Kw 110 approx.
Weight: 52.500 Kg. approx.

Anti-Static device
double-sheet control
Pneumatic sidelays
AMR - Automated Make Ready
KHS - Pre-Inking System
PQC Off Press Controls with overhead lamp
PDC-S Print Density Control spectrophotometer
KMS - IV Komori Management System Touchscreen Monitor
Komorimatic dampening with Technotrans recirculation unit
APC automatic plate change
Plate cylinder cocking
PTP paper thickness presets
Automatic Ink Roller Cleaning
Automatic Blanket Wash
Automatic Impression cylinder Wash
Ink Temperature Control
Sheet decurler
Sheet slow-down device
Chromed cylinders
Double size impression and skeleton transfer cylinder
Anilox coater
IR dryer
Air-compresor
Powder sprayer Grafix
Oil drip pan Tools Documentations
Complete with all standard parts and accessories
