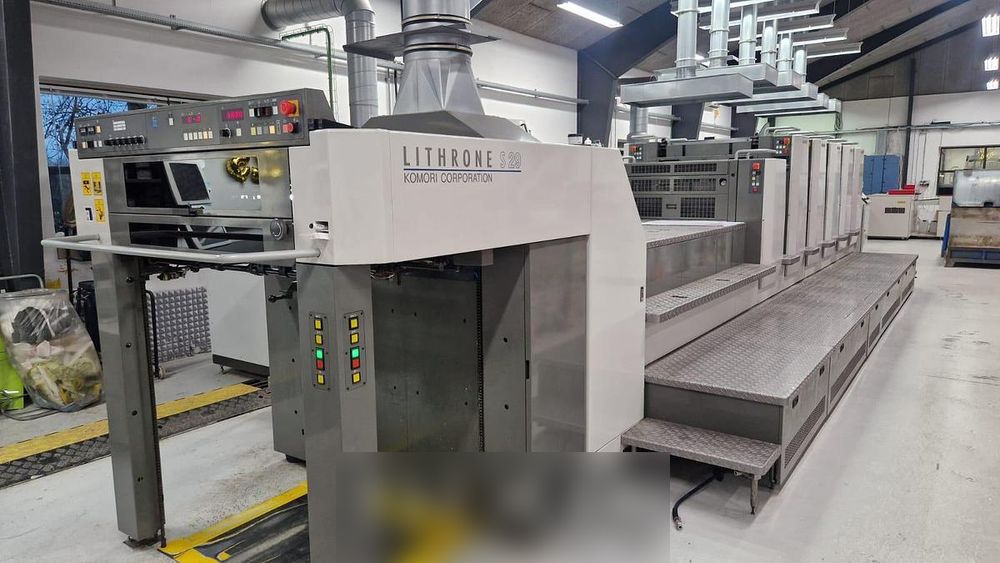

Komori LS 529+LX HUV 530 x 750mm

Impression count: 88 million
Max. sheet size: 530 x 750mm
Machine has been upgraded in 2021 with Lithec inline color measurement system.
All ink rollers replaced and the dampening rollers were upgraded from 78mm to 81mm same as GL version.
Since the upgrade machine has run 6 million impressions, machine has been serviced and well maintained by komori agent.

Five Colour + Coating Tower, Extended Delivery
PQC-S Komori (Print Quality Control)
PDC-S II (Print Density Control - Colour Management)
KMS IV (Komori Monitoring System)
KHS-AI (Advanced Interface)
AMR (Automatic Make Ready)
Full-APC (Automatic and semi-Auto Plate Mounting)
Cocking Register (lateral, vertical & diagonal)
Automatic Washers Devices: Rollers, Blanket & Impressions cylinders
Pre-connected to CIP3
Komorimatic Dampening
Technotrans Alpha.c 120L Refrigeration System
Feeder with Suction-belt feed table
Double Sheet & Side lay Detector
Ink Temperature Control
Venturi Air Guide (Skeleton Transfer Cylinder)
Chromed Impression Cylinders
Extended Delivery
Dryer H-UV Baldwin
Dryer IR Baldwin
Baldwin H-UV water Cooler system
Coating Tower Harris & Bruno with "Chambered Doctor Blade"
2 x Anilox Cylinders (13 and 19 cm3)
Air cabinet with the machine
Automatic Washer LithoCoat for Chambered Doctor Blade
Machine can be seen running.
Available from July 2026
