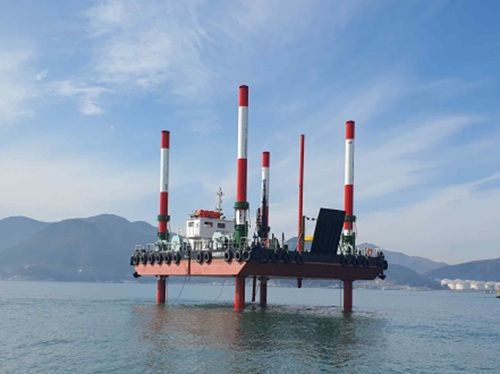

KOMSA 24m Jack-up Barge

Built: 2022
Class: KOMSA (Non IACS)
Length: 23.95 m
Width: 20 m
Depth: 2.38 m
Light weight: 296.5 ton
Spud length: 52 m
Spud diameter: 1000 mm
Spud step extension: 60 m
Spud second step extension: 73 m
Moon pool: 3.0 m x 1.0 m (2 units)
Lifting capacity: 560 ton
Deck strength: 5 ton/m²
Lifting speed: 6 m/min
Power unit: 118 kW engine x 2 sets
Main generator: 36 kW x 1
Aux generator: 25 kW x 1
Hydraulic crane: 7 ton (max)
Spud winch capacity: 50 ton (4 sets)
Spud winch speed: 15 m/min
Anchor winch: 6 ton x 4 sets
Mooring anchors: 1020 kg x 4
Fresh water tank: 11 ton
Fuel oil tank: 5.5 ton
Aux fuel tank: 1.5 ton x 2
Accommodation berths: 5 pax
Bathrooms: 1
Shower: 1
