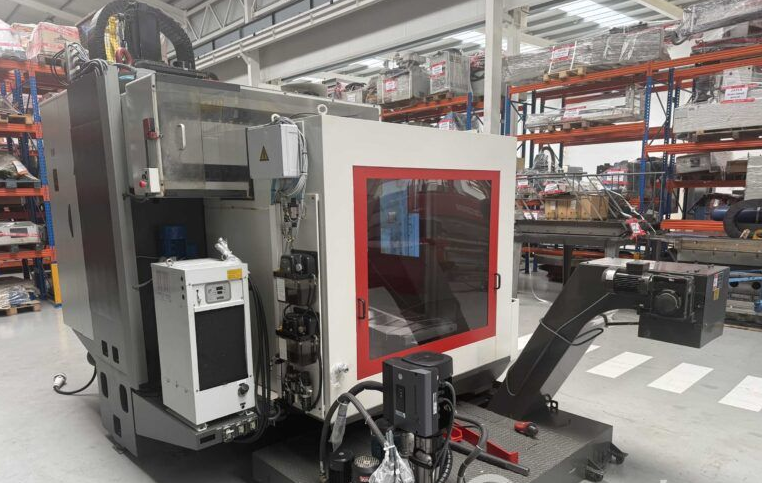

Kondia A-15 3 Axis
EUROPE (Western and Northern)
KONDIA A-15
Year: 2009
CNC: HEIDENHAIN TNC 530
Table surface: 1550 x 700 mm
T-slots: 5 slots, 18 mm width, 125 mm spacing
Distance from table to floor: 1000 mm
Distance from table to spindle nose (min/max): 145 / 845 mm
Maximum table load: 2500 kg
X-axis travel: 1500 mm
Y-axis travel: 700 mm
Z-axis travel: 700 mm
Rapid feed X/Y/Z: 24000 mm/min
Spindle taper: ISO 40 DIN 69871
Maximum spindle speed: 8000 rpm
Spindle power: 22 / 28 kW
ATC type: Chain
Tool change system: Random
Tool magazine capacity: 40
Maximum tool width (free adjacent): 150 mm
Maximum tool width (without free adjacent): 75 mm
Maximum tool length: 300 mm
Maximum tool weight: 6.5 kg
Tool pull stud: DIN 69872
Tool change time: 1.415 sec
Internal coolant: Included
Coolant tank capacity: 350 l
Chip conveyor: Included
Portable handwheel: Included
Total power: 47 kW
Machine weight: 14500 kg
