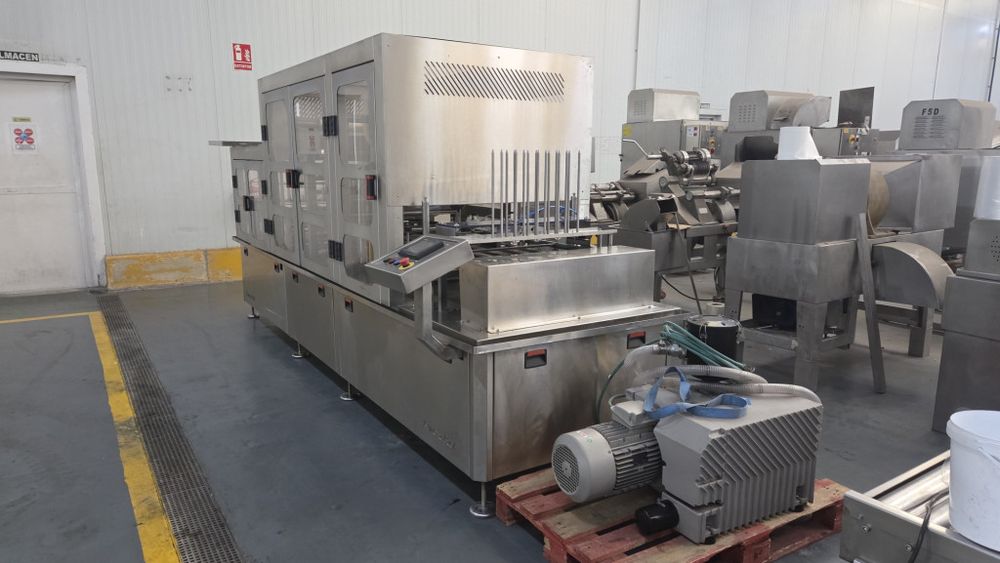

Konexa pack 4, Automatic tray filling, dosing and sealing machine

Volts (v) 400
Frequency (hz) 50 3 F+N
Power (hp) 3,5 Kw
Automatic tray filling, dosing and sealing machine, designed for food production lines that require high precision, hygiene and productivity.

System composition
The system is composed of:
Automatic tray denester for 4 units simultaneously
Piston filling machine with 4 dosing nozzles
Tray sealing system for 4 trays per cycle
Gas flushing system and vacuum option available
Vacuum pump included
Integrated automatic capping unit

Production capacity
Production: 6 – 8 cycles per minute, depending on tray format
Capacity: 4 containers per cycle
High efficiency for continuous packaging lines
Automatic sealing system
The automatic sealing unit is designed to provide a secure, precise seal adaptable to different tray formats.

Technical features:
Fully constructed in stainless steel
Frame made of structural tubing 50x50x2 mm, high robustness
Sealing head in anodized duralumin
Vacuum and gas flushing system (MAP)
Stainless steel cutting blade
Printed film registration control
Automatic liquid drainage in lower tray
Safety protection guard with security system

Dosing system
Piston dosing system for semi-solid products
High filling accuracy
Suitable for viscous or textured food products
Easy cleaning and maintenance

Control system
Complete electrical control panel
Touchscreen control (HMI)
Automatic production cycle management

Options
Easy-open system for trays
Adaptation to different tray formats
Integration into existing packaging lines

Applications
Ideal for products such as:
Sauces
Ready meals
Meat products
Cheese
Chilled or pasteurized dishes

Advantages
• High process automation
• Precise piston dosing system
• Hermetic sealing with vacuum or modified atmosphere
• Hygienic stainless steel structure
• Integrated safety system
• Stable and continuous production
