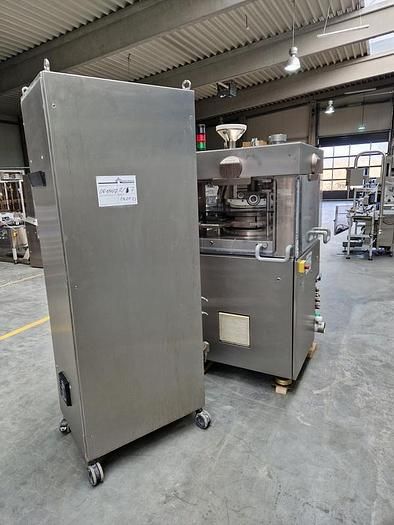

Korsch PH 300 Tablet Press
EUROPE (Western and Northern)
• Single rotary tablet press with 47 stations
• EU 19 tool type with BBS dies (die diameter 22 mm)
• Only for unguided tools
• Output 28,200 to 282,000 tablets/hour
• Max. pressing force 80 kN, max. pre-pressing force 20 kN
• Max. tablet diameter 13 mm
• Max. tablet height 100 mm 8.5 mm
• Maximum filling depth 18 mm, depending on filling curve (10 mm filling curve installed)
• Filling hopper with flange for attaching the Bohle MCG500/900 powder container
• Forced feeder (Fill-o-matic) for fine powder materials (1 spare force feeder available)
• Quick switch for defective tablets
• Korsch PHK2i Plus pressure force control system
• Siemens touchscreen, Windows CE software operating system
• Siemens S7-400 PLC
• Tool kit available (2 x 47 pieces for 9 mm diameter tablets, flat/flat with sleeve)
• Electrical connection 400V/50Hz
• New wiring between the cabinet and the machine (to be completed after ordering the machine)
