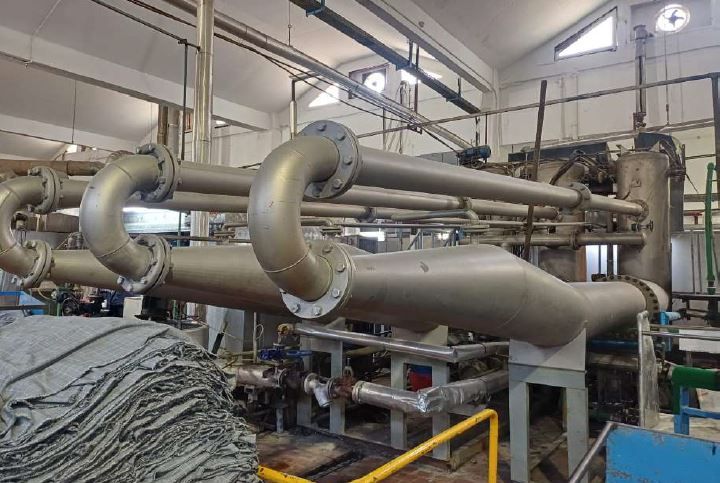

Krantz 300 kgs / 100 kgs each tube Jet dyeing
MIDDLE EAST
• The scope of application ranges from unfixed Polyester to Wool and Poly/Visco qualities.
• The maximum operating temperature is 140°C, and the maximum operating pressure is 3 bar.
• Thanks to high circulating speeds, high loading capacities can be achieved even with light articles.
• Partial or full flooding of the chamber offers additional flexibility in the loading.
• The smooth stainless-steel winch ensures gentle fabric transport.
• The quick stop winch shut-off immediately halts the transport winch if the fabric gets stuck, preventing scuff marks on the material.
• Entire treatment baths can be prepared in the automated 100% stock tank (optional, but strongly recommended).
• The quick stop winch shut-off, immediately halts the transport winch if the fabric gets stuck, pre- venting scuff marks on the material.
• A separate dissolving tank with injector is used for the dissolving function dry fill.
• The machine is equipped with a self-cleaning filter.
• The Power drain function accelerates the draining process with the help of the liquor pump.
• The baths can be drained at temperatures up to 92°C.
• The frequency-controlled unloading reel permits fast and reliable unloading.
• Shut-off devices between the individual chambers increase batch size flexibility in multi-chamber machines.
• Various monitoring functions offer precise information on the processes and key data:
• Two machines of identical capacity can be connected together with a coupling.
• The soft-TRD SIII can be expanded with a variable plaiter that controls the plaiting of the fabric rope in the chamber for better plaiting results.
• Shut-off devices between the individual chambers increase batch size flexibility in multi-chamber machines.
