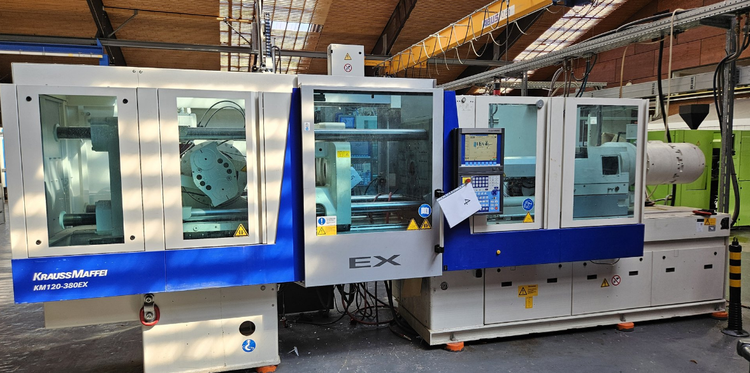

Krauss Maffei KM 120-380 EX 120 T

Steering: MC5
Year of construction: 2008
Operating hours: 10113 h

Technical data Closing side
Closing force: 1200 kN
Holmmass h x v: 470 x 470 mm
Plattengrösse h x v: 780 x 735 mm
Minimum installation height: 200 mm
Maximum installation height: 450 mm
Plattenabstand max.: 850 mm
Opening method: 400 mm
Ejector stroke: 150 mm
Ejector force: 22 kN
Centering movable plate D: 160 mm
Centering fixed plate D: 125 mm
Tool weight: 1485 kg

Technical data spray side
Screw diameter: 35 mm
Hubvolumen: 156 CC
Injection pressure: 2429 bar
Snail length: 23 l/d
worm speed: 289 min
Plasticizing current: 27 g/s PS
Injection flow to the open air: 477 g/s PS
Number of heating zones: 5

Dimensions & Weight
Machine dimensions (L x W x H): 6 m x 1.7 m x 2.19 m
Total weight: 9700KG

equipment
Bildschirmtext German
English screentext
CEE socket 16A
Hydraulic core pull 2x
Machine with water battery
Machine without material hopper
Nivellierelemente
EUROMAP 12 interface
Schuko socket 10A
