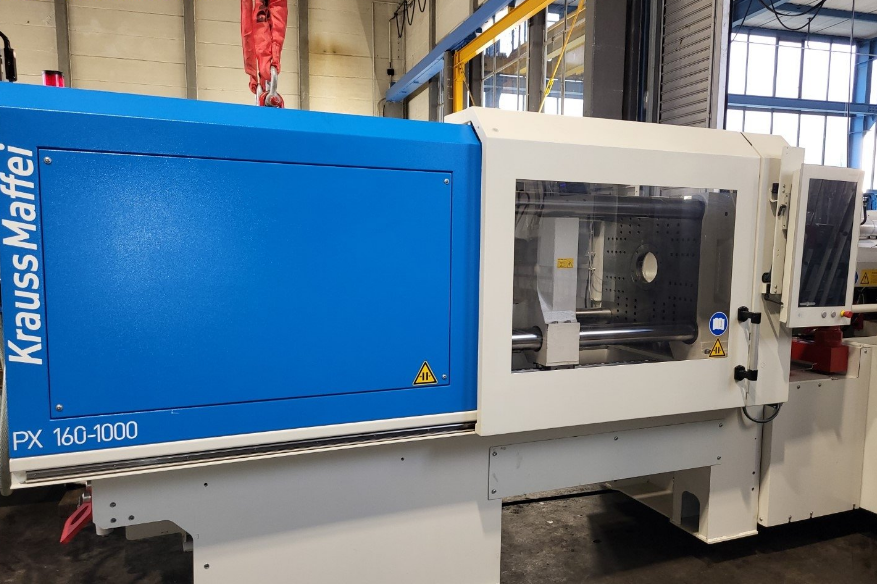

Krauss Maffei KM 160-1000 PX 160 T

Steering: MC6
Year of construction: 2018
Operating hours: 9585 h

Technical data Closing side
Closing force: 1600 kN
Holmmass h x v: 520 x 470 mm
Plattengrösse h x v: 710 x 660 mm
Minimum installation height: 200 mm
Maximum installation height: 600 mm
Opening method: 1050 mm
Ejector stroke: 150 mm
Ejector force: 33 kN
Centering movable plate D: 120 mm
Centering fixed plate D: 160 mm

Technical data spray side
Screw diameter: 55 mm
Hubvolumen: 523 CC
Injection pressure: 1904 bar
Snail length: 20 l/d
worm speed: 243 min
Worm torque: 827 N
Plasticizing current: 43 g/s PS
Injection flow to the open air: 297 g/s PS
Number of heating zones: 6

Dimensions & Weight
Machine dimensions (L x W x H): 6.7 m x 1.6 m x 2.3 m
Total weight: 10900KG

equipment
Bildschirmtext German
CEE socket 16A
CEE socket 32A
Pressure accumulator for increased injection power
Each has 3 freely programmable inputs and outputs
Pneumatic core pull 2 ​​x
Machine with water battery
Machine without material hopper
Nivellierelemente
Interface for coloring device
Interface for temperature control unit
USB interface
Schuko socket 10A
low-wear plasticizing unit
Tool heater 24x
