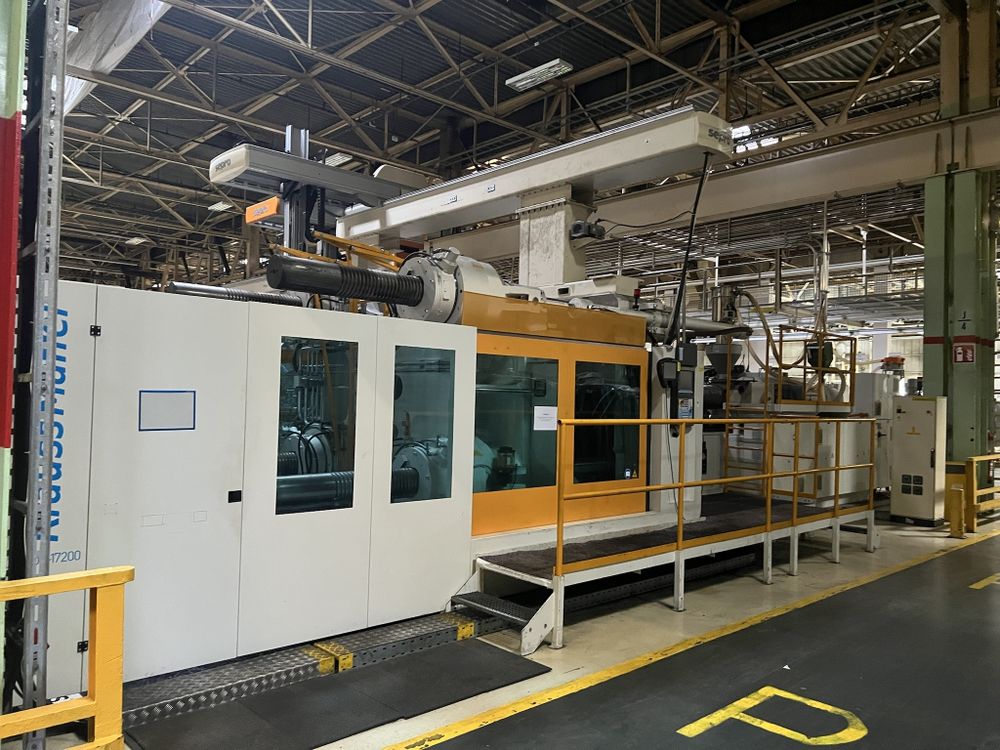

Krauss Maffei KM 1600 - 17200 MX 1600 T

Working hours 20000 h
Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 16000 kN
Size of mould platens (h x v) 2550 x 2110 mm
Distance between tie bars (h x v) 1870 x 1420 mm
Mould opening stroke 2700 mm
Mould height min/max 1000/1600 mm
Max. daylight 3700 mm
Hydraulic ejector - stroke 350 mm
Ejector force 300 kN

Injection unit:
Screw diameter 135 mm
Ls/D ratio 23
Injection pressure 1784 bar
Stroke volume 9662 ccm
Shot weight (PS) 8792 gr.
Injection rate 1290 ccm/s
Screw speed 81 1/min
Plasticising rate max. 182 g/s
Nozzle pressure 241 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 160 kW
Installed heating capacity 93 kW
Adjustable barrel heating zones 7
Reservoir capacity 2400 ltr.

Dimensions and weights:
Dimensions of the machine ca. 14,50 x 4,00 x 3,00 m
Total machine weight 87000 kg
Max. mould weight 43000 kg

Accessories:
- Anti vibration pads

Additional Options:
- 2 x air valves
- 3 x core pulls on movable plate
- 2 x core pulls on fix plate
- Robot interface according to Euromap 12
- 2 x air valves
- 2 x core pulls on movable plate
- 4 x core pulls on fix plate
- Robot interface according to Euromap 67
- 48 x hot runner controller
