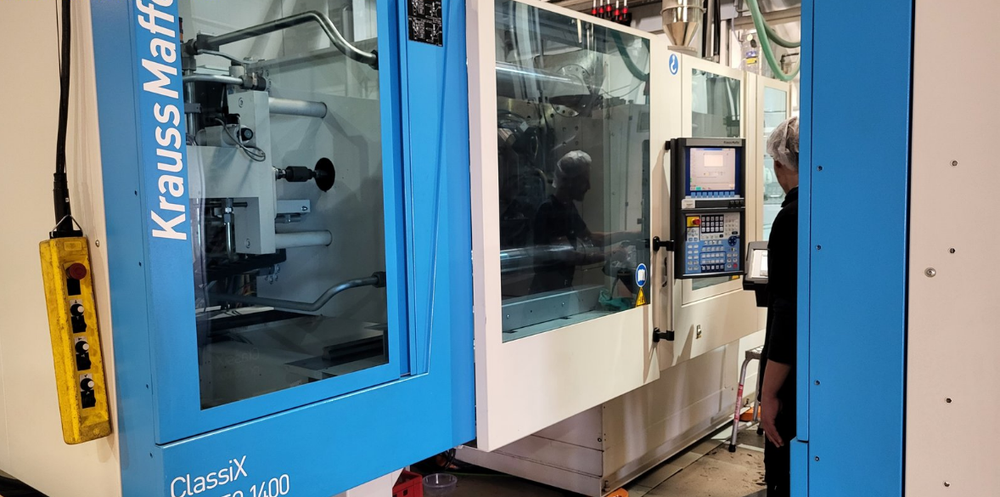

Krauss Maffei KM 250-1400 CX 250 T

Steering: MC5
Year of construction: 2010
Operating hours: 54872 h

Technical data Closing side
Closing force: 2500 kN
Holmmass h x v: 630 x 630 mm
Plattengrösse h x v: 995 x 1050 mm
Minimum installation height: 330 mm
Plattenabstand max.: 1150 mm
Opening method: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Centering movable plate D: 160 mm
Centering fixed plate D: 160 mm
Tool weight: 3430 kg

Technical data spray side
Screw diameter: 55 mm
Hubvolumen: 570 CC
Injection pressure: 2387 bar
Snail length: 22 l/d
worm speed: 260 min
Plasticizing current: 49 g/s PS
Number of heating zones: 6

Dimensions & Weight
Machine dimensions (L x W x H): 6.5 m x 2.2 m x 2.3 m
Total weight: 15000KG

equipment
2x temperature control point for hot runner
Bildschirmtext German
CEE socket 16A
Pressure accumulator for increased injection power + ejector or core pull in parallel
Hydraulic core pull 1x
Air valve 4x
Machine with material hopper
Machine with water battery
Machine without handling
Nivellierelemente
EUROMAP 12 interface
EUROMAP 67 interface handling
USB interface
Schuko socket 10A
low-wear plasticizing unit
