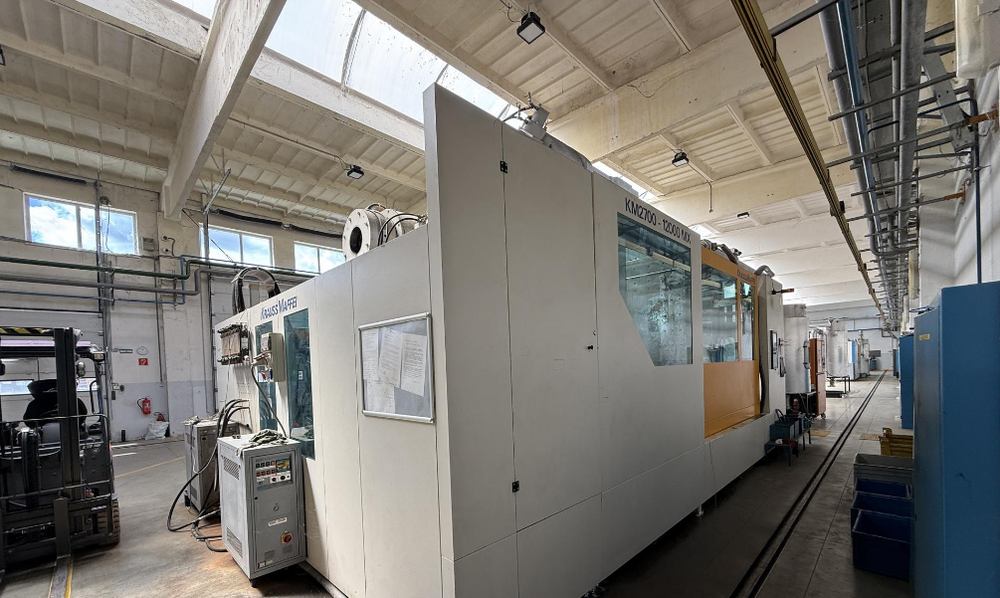

Krauss Maffei KM 2700 MX – SP 12000 2700 T

Working hours 59000
Screw Ø120 mm
MC5 controll

Clamping Unit
Clamping force: 27,000 kN / 2,700 t
Mold opening force: 1,890 kN
Moving platen force, opening/closing: 342 / 294 kN
Platen dimensions: 3,020 × 2,600 mm
Distance between tie bars (H × V): 2,100 × 1,700 mm
Opening stroke: 3,000 mm
Mold height min./max.: 900 / 2,000 mm
Maximum daylight: 3,900 mm
Ejector stroke: 400 mm
Ejector force forward/backward: 400 / 200 kN

Injection Unit – SP 12000
Screw diameter: 120 mm
L/D ratio: 23
Maximum injection pressure: 1,758 bar
Stroke volume: 6,786 cm3
Shot weight PS: 6,175 g
Injection flow rate: 1,118 cm3/s
Screw speed nominal/max.: 100 / 141 rpm
Plasticizing rate PS at nominal speed: 169 g/s
Plasticizing rate PE at nominal speed: 131 g/s
Plasticizing rate PS at maximum speed: 239 g/s
Plasticizing rate PE at maximum speed: 184 g/s
Nozzle contact force: 166 kN

Electro-Hydraulic Equipment
Pump motor rated power: 132 kW
Installed heating capacity: 84 kW
Barrel heating/control zones: 7
Dry cycle rate according to Euromap 6: 356 cycles/h
Dry cycle time according to Euromap 6: 10.1 s
Oil tank capacity: 2,440 l

Dimensions & Weight
Net weight incl. control cabinet: 168 t
Dimensions (L × W × H): 14.73 × 5.03 × 3.74 m
Maximum mold weight: 72,000 kg

With Electric Screw Drive
Screw drive power: 147 kW
Screw speed nominal/max.: 100 / 158 rpm
Plasticizing rate PS nominal: 178 g/s
Plasticizing rate PE nominal: 137 g/s
Plasticizing rate PS maximum: 267 g/s
Plasticizing rate PE maximum: 206 g/s

With Accumulator (ZE)
Injection flow rate: 1,696 cm3/s

Equipment:
4 cores hydraulic - moving platen
16 hydraulic cascades
6 pneumatic cascades
Hotrunnrer controllers: 48
removable tie bar
Software for Extrusion
