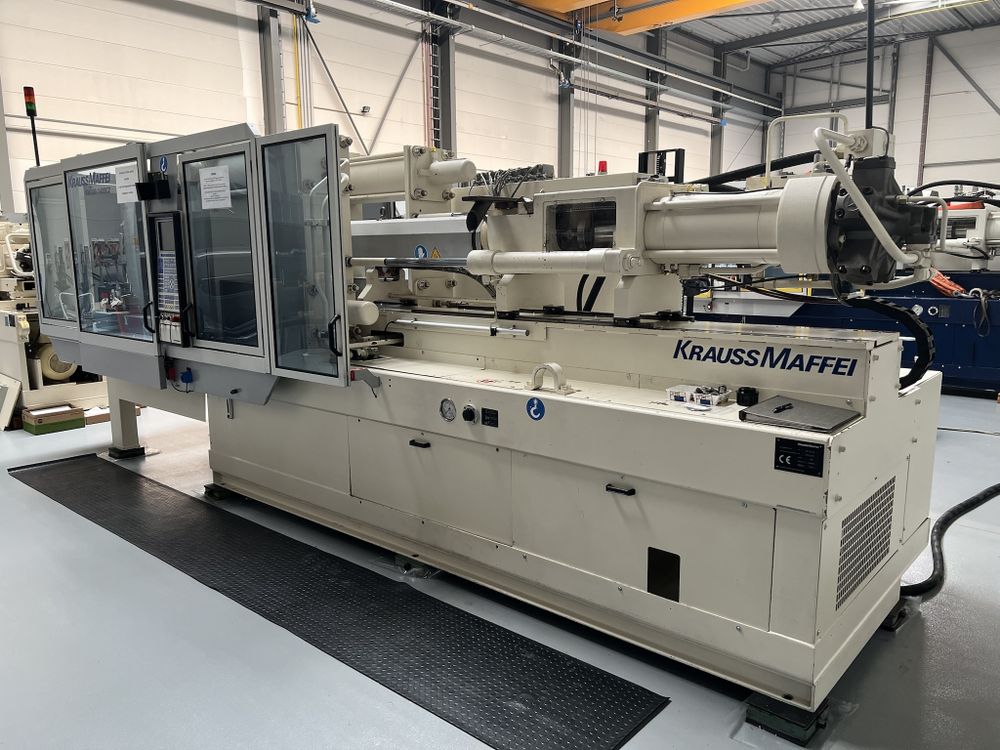

Krauss Maffei KM 300 - 1400 C2 300 T

Working hours 58350 h
Controlversion MC 4
Screentext German

Clamping unit:
Clamping force 3000 kN
Mould opening force, max. 160 kN
Travel force movable platen opening 86 kN
Travel force movable platen closing 68 kN
Size of mould platens (h x v) 995 x 1050 mm
Distance between tie bars (h x v) 630 x 630 mm
Mould opening stroke 820 mm
Mould height min 330 mm
Max. daylight 1150 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58 kN

Injection unit:
Screw diameter 60 mm
Ls/D ratio 21
Injection pressure 2000 bar
Stroke volume 679 ccm
Shot weight (PS) 618 gr.
Injection rate 325 ccm/s
Screw speed 259 1/min
Plasticising rate max. 58 g/s
Nozzle pressure 110 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 45 kW
Installed heating capacity 23kW
Adjustable barrel heating zones 6
Reservoir capacity 720 ltr.

Dimensions and weights:
Dimensions of the machine ca. 6,20 x 2,20 x 2,40 m
Total machine weight 14370 kg
Max. mould weight 3430 kg

Accessories:
- Anti vibration pads
- 8-fold water flow

Additional Options:
- 1 x Air valve
- 2 x Core pulls
- 8 x hotrunner controllers
- Robot interface according to Euromap 12
