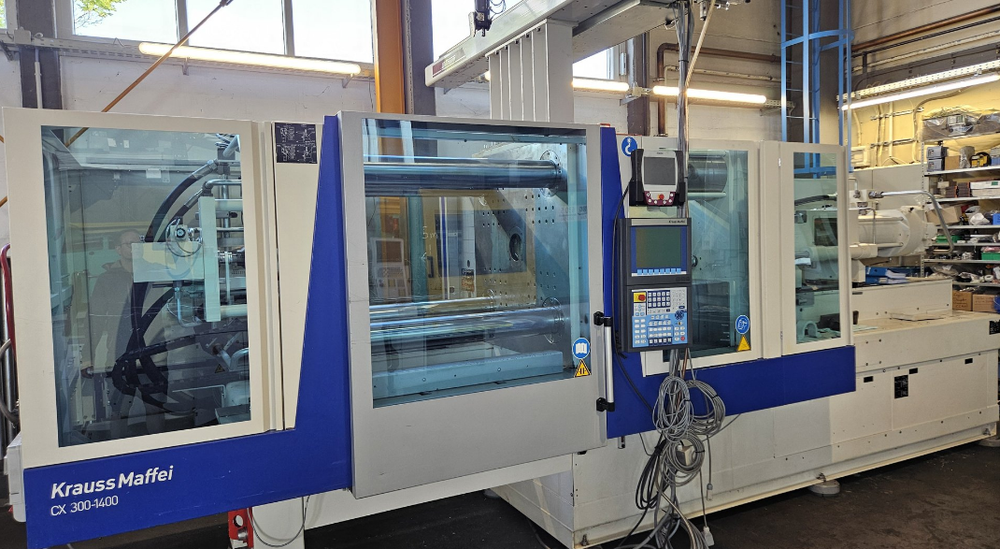

Krauss Maffei KM 300-1400 CX 300 T

Control: MC5
Year of manufacture: 2011
Operating hours: 78,454 h

Technical data, closing side
Clamping force: 3,000 kN
Timber dimensions (h x v): 630 x 630 mm
Plate size (h x v): 995 x 1,050 mm
Minimum installation height: 330 mm
Maximum plate spacing: 1,150 mm
Opening stroke: 820 mm
Ejector stroke: 200 mm
Ejector force: 58 kN
Moving plate centering diameter: 160 mm
Fixed plate centering diameter: 160 mm
Mold weight: 3,430 kg

Technical data, injection side
Screw diameter: 60 mm
Crank volume: 678 cc
Injection pressure: 2,007 bar
Screw length: 20 l/d
Screw speed: 260 rpm min
Screw torque: 84 N
Injection flow to atmosphere: 311 g/s PS
Number of heating zones: 6

Dimensions & Weight
Machine dimensions L x W x H: 6.5 m x 2.2 m x 2.3 m
Total weight: 15,000 kg

Equipment
German screen text
16 A CEE socket
Pressure accumulator for increased injection capacity
2x hydraulic core pulls
Machine without handling unit
Machine without material hopper
Leveling elements
EUROMAP 67 handling interface
Handling interface
10 A Schuko socket
