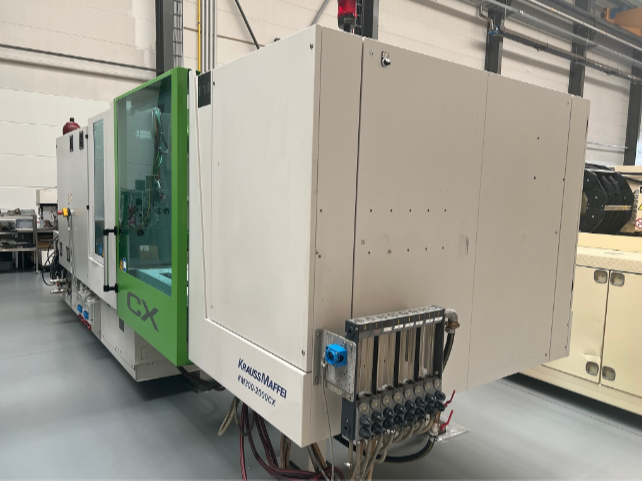

Krauss Maffei KM 300 – 2000 CX 300 T

Working hours 74000 h
Controlversion MC 5
Screentext German

Clamping unit:
Clamping force 3000 kN
Mould opening force, max. 169 kN
Travel force movable platen opening 86 kN
Travel force movable platen closing 68 kN
Size of mould platens (h x v) 995 x 1050 mm
Distance between tie bars (h x v) 630 x 630 mm
Mould opening stroke 820 mm
Mould height min 330 mm
Max. daylight 1150 mm
Hydraulic ejector - stroke 200 mm
Ejector force 58/28 kN

Injection unit:
Screw diameter 75 mm
Ls/D ratio 18,7
Injection pressure 1635 bar
Stroke volume 1237 ccm
Shot weight (PS) 1126 gr.
Injection rate 442 ccm/s
Screw speed 220 1/min
Plasticising rate max. 87 g/s
Nozzle pressure 82 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 55 kW
Installed heating capacity 29 kW
Adjustable barrel heating zones 6
Oil Reservoir capacity 720 ltr.

Dimensions and weights:
Dimensions of the machine ca. 6,50 x 2,20 x 2,40 m
Total machine weight 14500 kg
Max. mould weight 3430 kg

Accessories:
- Anti vibration pads
- 8-fold water distributer
- Krauss Maffei robot LR100
X: 550 mm, Servo
Y: 1200 mm, Servo
Z: 2000 mm, Servo
C: 0-90°, pneumatic

Additional Options:
- 1 x hydr. core pull
- 1 x Air valve
- Accumulator
- 6 x hotrunner controller
Robot interface according to Euromap 67

This second hand injection moulding machine
Krauss Maffei KM 300 – 2000 CX is tested and
in working condition
