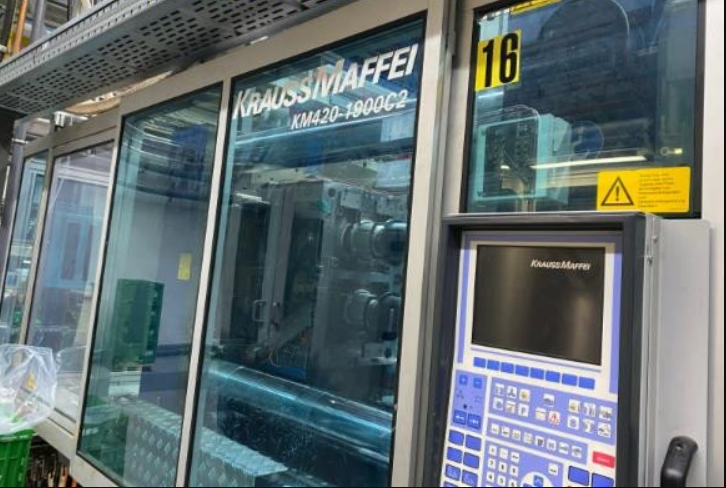

Krauss Maffei KM 420-1900 C2 420 T

Steering: MC 4
Year of construction: 2005
Operating hours: 59000 h

Technical data Closing side
Closing force: 4200 kN
Holmmass h x v: 800 x 800 mm
Plattengrösse h x v: 1270 x 1200 mm
Minimum installation height: 580 mm
Plattenabstand max.: 1300 mm
Opening method: 720 mm
Ejector stroke: 250 mm
Ejector force: 95 kN
Centering movable plate D: 200 mm
Centering fixed plate D: 200 mm
Tool weight: 6700 kg

Technical data spray side
Screw diameter: 60 mm
Hubvolumen: 769 CC
Injection pressure: 2200 bar
Snail length: 23 l/d
worm speed: 285 min
Plasticizing current: 70 g/s PS
Injection flow to the open air: 700 g/s PS
Number of heating zones: 6

Dimensions & Weight
Machine dimensions (L x W x H): 6.83m x 2.33m x 2.48m
Total weight: 23090KG

equipment
Bildschirmtext German
Hydraulic core pull 4x
Machine without handling
Machine without material hopper
Leveling elements
Tool heater 12x
