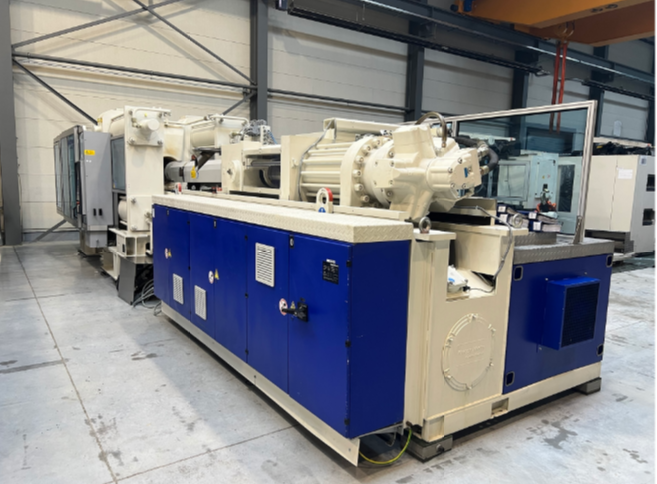

Krauss Maffei KM 650 - 6100 CM 650 T

Working hours 70000 h
Controlversion MC 4
Screentext German

Clamping unit:
Clamping force 6500 kN
Mould opening force, max. 346 kN
Travel force movable platen opening 169 kN
Travel force movable platen closing 144 kN
Size of mould platens (h x v) 1520 x 1470 mm
Distance between tie bars (h x v) 1000 x 930 mm
Mould opening stroke 1150 mm
Mould height min 600 mm
Max. daylight 1750 mm
Hydraulic ejector - stroke 250 mm
Ejector force 95 kN

Injection unit:
Screw diameter 96 mm
Ls/D ratio 23
Injection pressure 1795 bar
Stroke volume 3367 ccm
Shot weight (PS) 3064 gr.
Injection rate 690 ccm/s
Screw speed 153 1/min
Plasticising rate max. 104 g/s
Nozzle pressure 166 kN

Electric and Hydraulic Equipment:
Nominal capacity of pump motor 90 kW
Installed heating capacity 50 kW
Adjustable barrel heating zones 7

Dimensions and weights:
Dimensions of the machine ca. 9,83 x 2,90 x 2,80 m
Total machine weight 43170 kg

Accessories:
- Anti vibration pads
- Krauss Maffei Robot LR300
X: 1200 mm, servo
Y: 1000/1000 mm, servo
Z: 3500 mm, servo
C: 0 - 90°
- Conveyor
- saftey guard

Additional options:
- 1 x air valve
- 6 x pneumatic sequentional valves
- 12 hotrunner controller
- 2 x hydr. core pulls on movable plate
- 2 x hydr. core pulls on fix plate
