Krauss Maffei KM 650 – 8000 CM 650 T

Operating hours 80000 h
Control type MC 3-F
screen text German

Locking unit:
Closing force 6500 kN
Tool opening force, max. 346 kN
Driving force movable plate open 169 kN
Driving force moving plate close 144 kN
Mounting plate (hxv) 1704 x 1700 mm
Clear width (hxv) 930 x 930 mm
Tool opening path 1150 mm
Minimum tool installation height 600 mm
Opening width: 1750 mm
Ejector stroke 250 mm
Ejector force forward/backward 226 kN

Injection unit:
screw diameter 130 mm
Ls/D ratio 20
Injection pressure 1296 bear
Displacement volume 6172 cc
Shot weight (HP) 5617 gr.
Injection flow 1540 cc/s
worm speed 138 1/min
Plasticizing current 238 g/s
Nozzle system force 246kN

Electrohydraulic equipment:
Rated power of pump motor 132 kW
Installed heating capacity 70 kW
Control zones cylinder heating 7

Dimensions and weights:
Space required approx. 12.00 x 2.80 x 2.70 m
Total weight 43000 kg

Accesories:
- Vibration elements

Additional equipment:
- 1 x air valve
- 2 x hydraulic pulleys on BFAP
- 2 x hydraulic pulleys on FFAP
- 8 x hot runner control points
- Robot interface according to Euromap 67

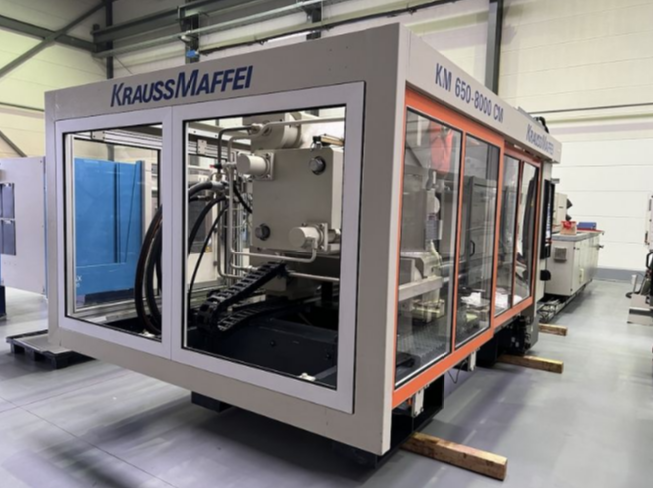

The used Krauss Maffei KM 650 - 8000 CM injection molding machine
has been function-tested and is in perfect working order and ready for production.
This Krauss Maffei KM 650 - 8000 CM injection molding machine can
be viewed at any time by prior appointment.
