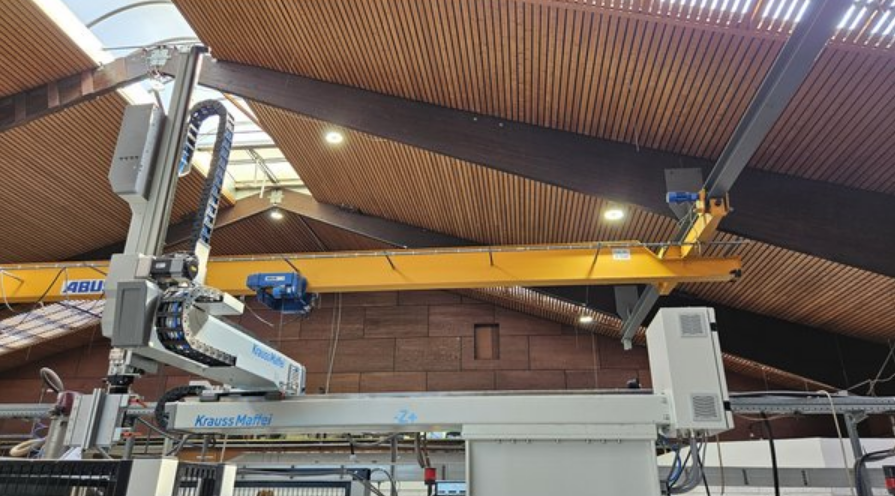

Krauss Maffei LRX EasyControl 50

Technical Machine Advantages:
Application areas: simple pick & place automation tasks
Special features: speed, precision, durability, efficiency, longevity
Working space: cuboid-shaped area
Payload: 5 kg
Wrist axes: pneumatically and servo-motor controlled
Control system concept: easycontrol
(appearance and handling similar to MC6)
Transfer variants: non-operator side
Available languages for CNC control: DE, ES, CN, CZ, PL, IT, SL, PT, PT, USA
Qualitative Machine Advantages: Flexible stand-alone design for
hardware and operation
Optimal accessibility through the decentralized control cabinet concept
Impressive precision with rack-and-pinion drive
Compact and lightweight: the new wrist axes
Fast and flexible with the central media portal
New concept for a high level of safety
Operation with the factor "comfort"
Easycontrol – intuitive operation and programming
connection power: 20 kVA
C - Axis: – 0-90 °, pneumatisch
stroke X – axis: 620 mm
stroke Y – axis: 1200 mm
stroke Z – axis: 1500 mm
electric interface: EUR 67
Load capacity: 5 KG
