Krefeld, Kusters 222.53 / 2600 260 Cm Finishing Mangle

Ref : 505483-1-AZ
Condition : Used
Manufacturer : Krefeld, Kusters
Model : 222.53 / 2600
Width : 260 Cm
Short Description : Finishing Mangle
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 05 Apr. 2019

Type of machine Finishing Mangle
Make KUESTERS, KREFELD
Type 222.53 / 2600
Year of manufacture überholt
Type of control conventional
Working width 2600 mm
Roller width 2800 mm
Number of rollers 2 pieces
Supporting roller - 295 mm dia
Roller covering - soft rubber 75 ° shore
Swimming roll - 240 mm dia
Roller covering - soft rubber 75 ° shore
Pressure line 50 N / mm
Total pressure 14 to
Cloth woven fabrics guiding system for a temple, guide roller
Drive side to Order
Opera Starting side by Order
Drive shaft dia 80mm
Hydraulic pressure unit for separately in stainless steel
Compensator with pneumatic. discharge

Additional information

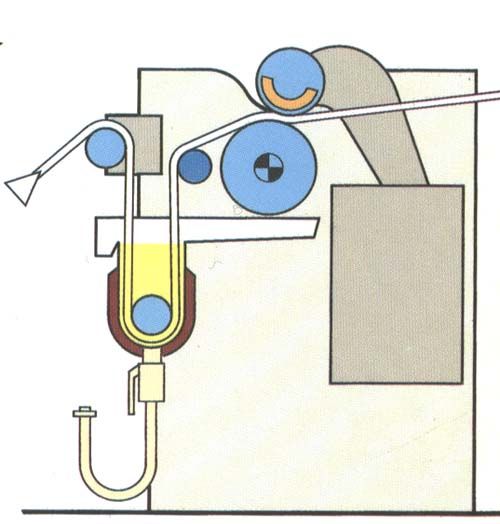

• 2-Bowl high efficiency squeezer with one "Swimming Roll" (S-roll)
• Machine will be completely overhauled before delivery. We supply with warranty (6 months)

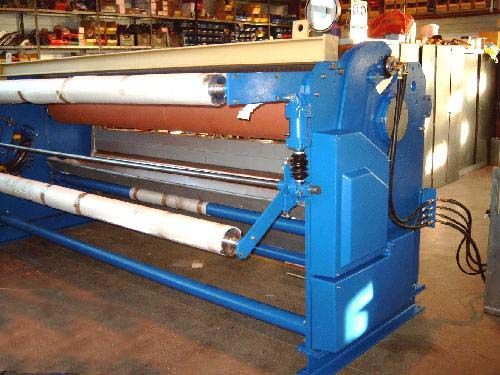

(Photo shows a similar machine after overhauling in delivery-status)
• New drive for adaptation of the machine is deliverable for add. costs.
