Krefeld, Kusters 222.53 / 3400 340 Cm Finishing Mangle

Ref : 505474-1
Condition : Used
Manufacturer : Krefeld, Kusters
Model : 222.53 / 3400
Width : 340 Cm
Short Description : Finishing Mangle
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 05 Apr. 2019

Type of machine Finishing Mangle
Make KUESTERS, KREFELD
Type 222.53 / 3400
Year of manufacture Generalüberholt
Type of control conventional
Working width 3400 mm
Roller width 3600 mm
Number of rollers 2 Stück
Supporting roller - dia 340 mm
Roller covering - soft rubber 75 Grad shore
Swimming roll - dia 270 mm
Roller covering - soft rubber 75 Grad shore
Pressure line 50 N / mm
Pressure total 17 to

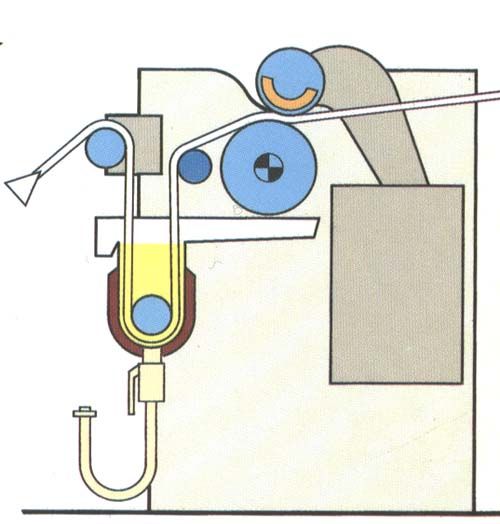

Cloth woven fabrics born guiding system for spreader roll
Liquor trough with guide roll + displacement
Drive side to Order
Opera Starting side by Order
Drive shaft dia 80mm

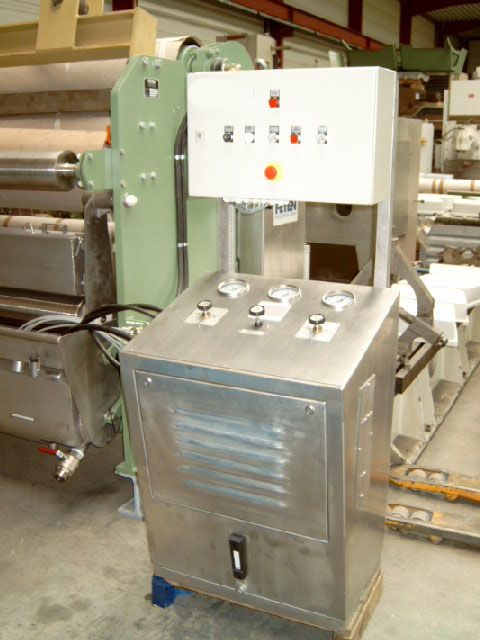

Hydraulic pressure unit for separately in stainless steel

Additional information
• Machine will be completely overhauled before delivery, we supply with warranty.

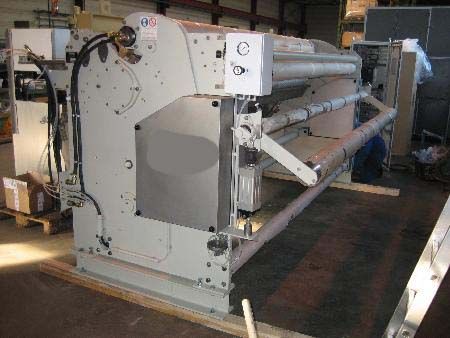

(Photos are showing similar machines after overhauling in delivery-status)
• Without drive, a new one can be supplied and adapted to local conditions, if required
