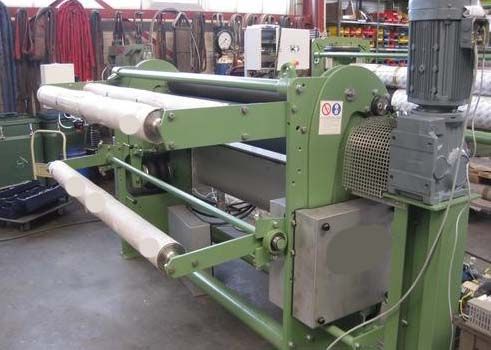

Krefeld, Kusters 222.58 / 2200, Dye Padder 220 Cm

Type of machine Dye Padder
Make KUESTERS, KREFELD
Type 222.58 / 2200
Year of manufacture überholt
Type of control conventional
Working widths 2200 mm
Roller width 2400 mm
Number of rollers 2 pieces
Swimming roll - 190 mm dia
Roller covering - 100 degrees offshore ebonite
Supporting roller - 270 mm dia
Roller covering - soft rubber 75 ° shore
Pressure line 50 N / mm
Pressure to total 12
Liquor made ​​of stainless steel trough with guide roll
Capacity of 60 liters of dye tub
Cloth woven fabrics guiding system for curved spreader
Drive shaft 80 mm

Additional information
• 2-Bowl-padder with 1 "swimming-roll" and supporting roll.

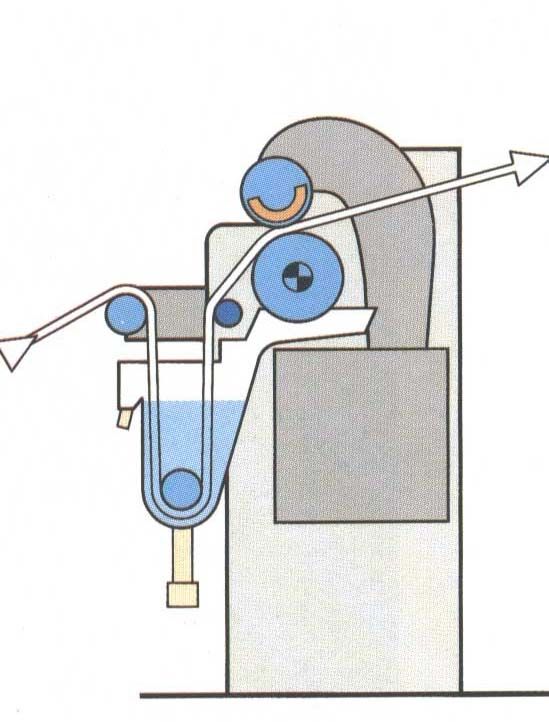

Version according to sketch,
Inlet, compensator and drive are additionally possible.
