KHS, Krones Complete non-returnable glass bottling line for hot fill and cold fill

Complete non-returnable glass bottling line for hot fill and cold fill Krones / KHS
Capacity: up to 33.000 bph by 500 ml glass bottles
(the capacity depends on the product, the product temperature and CO2 content)

Products:
juices like orange juice, apple juice, tomato juice, etc.
but also cold fill products like CSD with CO2

Bottle sizes: 250 ml - 1000 ml

Capping type:
28 mm aluminium
33 mm aluminium twist-off cap
43 mm aluminium twist-off cap
(the twist-off capping machine is included in the scope of supply)

Labelling:
paper labels with cold glue on the bottle

Packaging:
wrap around packaging (full carton) or tray packaging but without foil shrinking station

Depalletizing and palletizing:
full automatically

Year of manufacturing: 1999 - 2007

This line was in production until end of 2025 in a German fruit juice and CSD company. It is still installed
but out of production in North East of Germany. With this line you are fully flexibel because of hot fill, cold fill with and without CO2 content and it is consist of industry-leading brands like KHS, Krones, Meypack, Logopack, etc.

consisting of:
Depalletizer Meypack type DL 71, full automatic machine,
incl. pallet conveyor and pallet magazine
low level depalletizing system

Linear rinser Niko
Year of manufacturing: 1999
PLC Siemens S7
Multi flexible linear system
when hot filling products will be filled, you have to heat up the bottle to prevent bottle bursting in the filler. This is why the Niko rinser heats up the bottle with hot water incl.
heat recovering system incl. steam heat exchangers

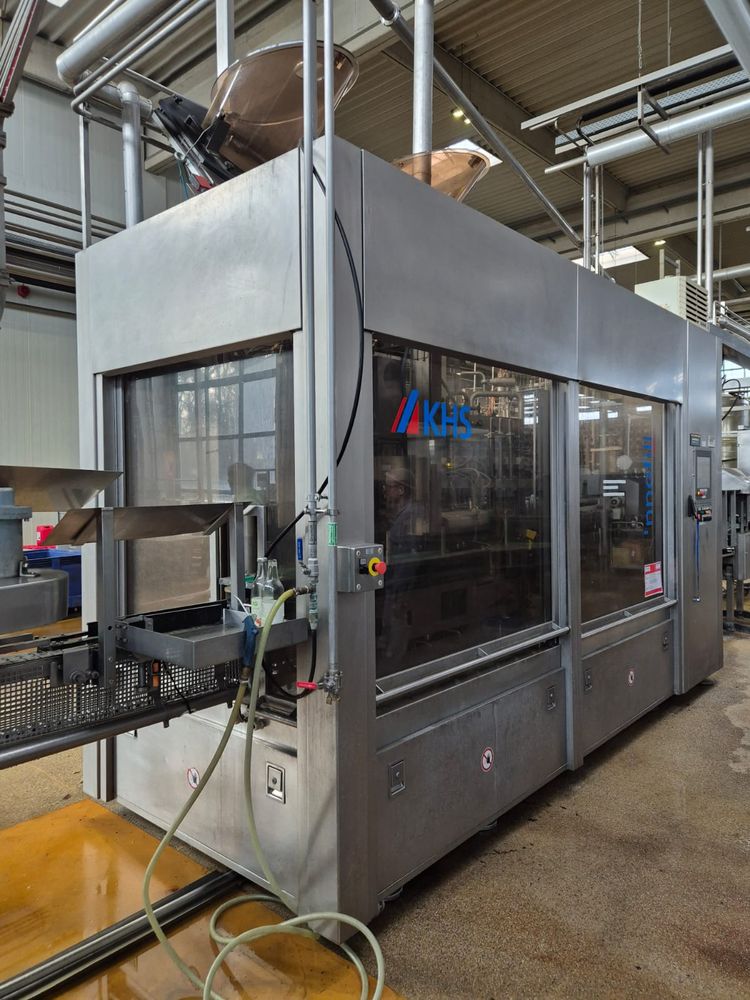

Filler KHS Innofill DNR 80
with 80 filling valves and 15head aluminium
screw Capper
Year of manufacturing: 1999
PLC Siemens S7 (HMI renewed in 2015)
Temperature range: 10°C to 104°C
incl. product recirculation system

Twist-Off capping machine
Italmeccania/Crown Model: S4BLH
PLC Siemens S7
for 2 types of twist-off caps 33 mm and 43 mm
Steam-heated system
Automatic closure sorting unit and closure feeding system

Cooling tunnel Tuchenhagen / Göbel
type K1-135, machine with 7 zones to cool down the hot fill bottles from approx. 100°C to approx. 25° C

Europool bottle drying station
year of manufacturing: 2007
to dry the bottles with air flow before labelling

Labelling machine Krones Starmatic
PLC Siemens S5
to label pre-cutted paper labels with cold glue, either
by body and neck or around the bottle

Packaging machine KHS wrap-around packaging machine type Kisters 320/50
year of manufacturing: 1999
capacity: up to 50 tacts / Min.
tray packaging or wrap-around carton possible
with Nordson hot melt system

Complete bottle and pack conveyor system
KHS and Krones

Palletizer KHS
type 1BSN2
Year of manufacturing: 1999
PLC Siemens S7
incl. pre-grouping station,
incl. pallet labellling machine Logopack
Pallet formats: Düsseldorf, Euro, Industrial

Reverse Osmosis System MWT
Capacity: 800 l/h
Specifications:
High-quality filtration
Suitable for beverage production water treatment
