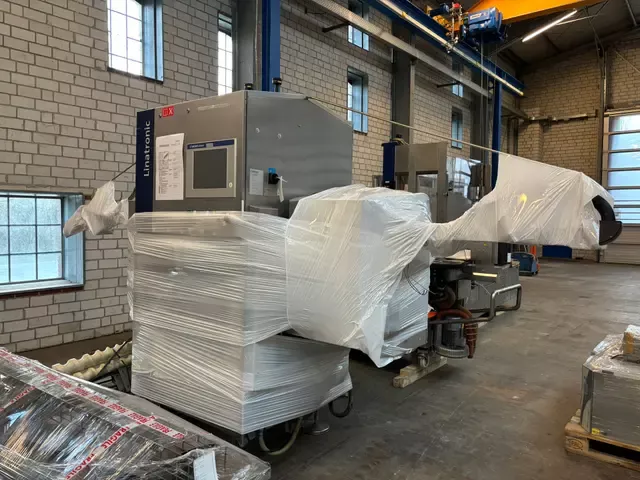

Krones Linatronic 735 M2 Empty Bottle Inspector

Capacity: Not provided
Formats:
0.75 L Gourmet bottle
0.25 L Gourmet bottle
0.25 L Vichy bottle

Application: Inspection of empty bottles prior to filling

Configuration: Multiple inspection modules including base inspection, sealing surface inspection, thread inspection, mouth/finish inspection, sidewall inspection, residual liquid detection, foreign container detection, bottle height control (±2.5 mm tolerance)
Inspection systems:
Base inspection (camera)
Sealing surface inspection
Thread inspection (conical optics)
Mouth / finish inspection
Sidewall inspection with LED illumination
Detection of transparent films on bottle base and sidewall
Scuffing detection via sidewall camera
Residual liquid detection via infrared system and high-frequency detection
Reject systems:
Foreign container rejection at infeed
Contaminated bottle rejection at discharge

Separate rejection for bottles with damaged finish or thread
Utilities: Pneumatic system (Festo / Bosch components), electronic cabinet cooling unit
Transport height: approx. 1,050 mm
Direction of operation: Left machine
